Product Details:
|
| Panel Size :: | 15.0 Inch | Resolution :: | 1024(RGB)×768 , XGA |
|---|---|---|---|
| Active Area :: | 304.128×228.096 Mm | Outline :: | 321×245.4×10 Mm |
| Brightness :: | 200 Cd/m² (Typ.) | Display Colors :: | 16.2M (6-bit + FRC) |
| High Light: | lcd display panel,innolux lcd screen |
||

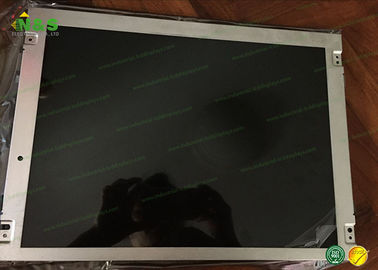

15.0 inch M150X4-L06 Innolux LCM 1024×768 200 350:1 16.2M 60Hz Frequency
M150X4-L06 Information
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 930g (Max.) |
| Active Area : | 304.128×228.096 mm (H×V) |
| Bezel Area : | 307.5×231.4 mm (H×V) |
| Outline Dimension : | 321×245.4 mm (H×V) |
| Outline Depth : | 9.7/10.0 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (8-M2.5) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 350 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.2M (6-bit + FRC) |
| Response Time : | 6/17 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.40 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
| Amount per Box : | 10 pcs |
| Box Size : | 511×420×360 mm (L×W×H) |
| Box Gross Weight : | 11 Kgs |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Return and Refund:
1.Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
2. All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
3. Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
