Product Details:
|
| Panel Size: | 8.0 Inch | Resolution: | 480(RGB)×220 |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | TFT Specific Analog RGB , 30 Pins |
| High Light: | industrial touch screen display,industrial lcd panel |
||
| Panel Size : | 8.0 inch |
| Dot Resolution : | 480(RGB)×220 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 65 PPI |
| Aspect Ratio : | 17:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1255×0.4285 mm (H×V) |
| Pixel Pitch : | 0.3765×0.4285 mm (H×V) |
| Weight : | 198±3g |
| Surface : | Antiglare |
| Active Area : | 180.72×94.27 mm (H×V) |
| Bezel Area : | 182.7×96.3 mm (H×V) |
| Outline Dimension : | 193×108.3 mm (H×V) |
| Outline Depth : | 6.7±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 350 : 1 (Typ.) (Transmissive) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 50/50/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Our Company Strength in LCD Screen Sourcing:
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| EK014BS012 | PDI | 1.44" | 128×96 |
| EK014BS011 | PDI | 1.44" | 128×96 |
| EG020BS012 | PDI | 2.0" | 200×96 |
| EG020BS011 | PDI | 2.0" | 200×96 |
| EG020AS013 | PDI | 2.0" | 200×96 |
| EG020AS012 | PDI | 2.0" | 200×96 |

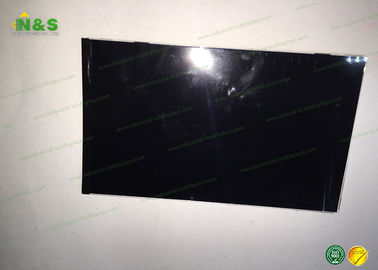

PW080XU1 Picture
