Product Details:
|
| Panel Size :: | 14.0 Inch | Resolution :: | 1366(RGB)×768 , WXGA |
|---|---|---|---|
| Active Area :: | 309.399×173.952 Mm | Outline :: | 320.9×205.6×3.6 Mm |
| Surface :: | Glare (Haze 0%), Hard Coating | Contrast Ratio :: | 500:1 (Typ.) |
| High Light: | industrial touch screen display,industrial lcd panel |
||

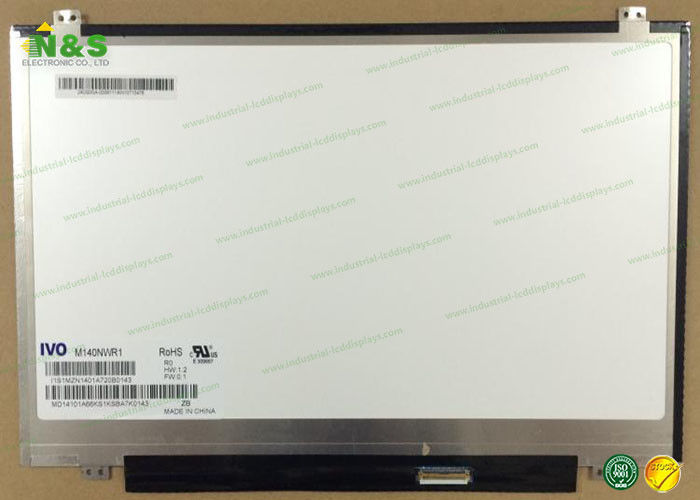

14.0 inch M140NWR1 R0 IVO LCM 1366×768 Normally White 60Hz
M140NWR1 R0 DETAIL
| Panel Size : | 14.0 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 112 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0755×0.2265 mm (H×V) |
| Pixel Pitch : | 0.2265×0.2265 mm (H×V) |
| Weight : | 330g (Max.) |
| Surface : | Glare (Haze 0%), Hard coating |
| Active Area : | 309.399×173.952 mm (H×V) |
| Outline Dimension : | 320.9×205.6 mm (H×V) |
| Outline Depth : | 3.6 (Max.) mm |
| Shape Style : | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets : | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 8 (Typ.)(Tr+Td) |
| Viewing Angle : | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.49 (Max.)(5/13 points) |
| Sunlight Readable : | N |
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Life Time : | 12K(Min.) (Hours) |
| Interface Type : | Included in panel signal interface |
| Lamp Driver Board : | Embedded (LED Driver) |
| Lamp Driver Board : | 6.0/12.0/21.0V (Min./Typ./Max.) |
| Lamp Driver Board : | 3.3W (Max.) |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| C020SN91 | IVO | 2.0" | 176×220 |
| C054SWZ5 | IVO | 5.4" | 540×960 |
| C116NWR5-0 | IVO | 11.6" | 1366×768 |
| C024SN21-1 | IVO | 2.4" | 240×320 |
| C055SWF5-0 | IVO | 5.5" | 1080×1920 |
| C050SWA6-3 | IVO | 5.0" | 720×1280 |
| C050SWYG-0 | IVO | 5.0" | 480×854 |
| C050SWYD-2 | IVO | 5.0" | 480×854 |
| C054SWN1-2 | IVO | 5.4" | 540×960 |
| C050SWAF-0 | IVO | 5.0" | 720×1280 |
