Product Details:
|
| Panel Size :: | 13.3 Inch | Resolution :: | 1366(RGB)×768 , WXGA |
|---|---|---|---|
| Active Area :: | 293.42×164.97 Mm | Outline :: | 306.3×192.77×3.2 Mm |
| Surface :: | Antiglare, Hard Coating (3H) | Brightness :: | 300 Cd/m² (Typ.) |
| High Light: | industrial touch screen display,industrial lcd panel |
||

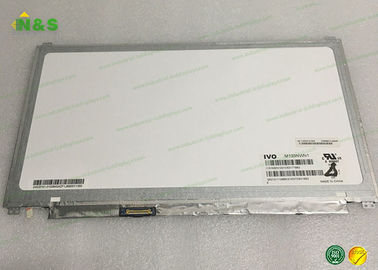

M133NWN1 R1 IVO 13.3 inch LCM with 293.42×164.97 mm for All Laptop
M133NWN1 R1 Information
| Panel Size : | 13.3 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 118 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0716×0.2148 mm (H×V) |
| Pixel Pitch : | 0.2148×0.2148 mm (H×V) |
| Weight : | 275g (Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 293.42×164.97 mm (H×V) |
| Outline Dimension : | 306.3×192.77 mm (H×V) |
| Outline Depth : | 3.2 (Max.) mm |
| Shape Style : | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets : | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 3/5 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.59 (Max.)(5/13 points) |
| Sunlight Readable : | N |
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Life Time : | 15K(Min.) (Hours) |
| Interface Type : | Included in panel signal interface |
| Lamp Driver Board : | Embedded (LED Driver) |
| Lamp Driver Board : | 6.0/12.0/21.0V (Min./Typ./Max.) |
| Lamp Driver Board : | 3.6W (Max.) |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| C020SN91 | IVO | 2.0" | 176×220 |
| C054SWZ5 | IVO | 5.4" | 540×960 |
| C116NWR5-0 | IVO | 11.6" | 1366×768 |
| C024SN21-1 | IVO | 2.4" | 240×320 |
| C055SWF5-0 | IVO | 5.5" | 1080×1920 |
| C050SWA6-3 | IVO | 5.0" | 720×1280 |
| C050SWYG-0 | IVO | 5.0" | 480×854 |
| C050SWYD-2 | IVO | 5.0" | 480×854 |
| C054SWN1-2 | IVO | 5.4" | 540×960 |
