Product Details:
|
| Panel Size :: | 13.3 Inch | Resolution :: | 1366(RGB)×768 , WXGA |
|---|---|---|---|
| Active Area :: | 293.42×164.97 Mm | Outline :: | 314.1×188.7×3 Mm |
| Surface :: | Glare (Haze 0%), Hard Coating (3H) | Brightness :: | 200 Cd/m² (Typ.) |
| High Light: | industrial touch screen display,industrial lcd panel |
||

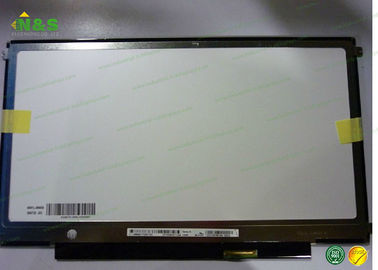

M133NWN1 R0 IVO 13.3 inch LCM with 293.42×164.97 mm 60Hz
M133NWN1 R0 Specification
| Panel Size : | 13.3 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 118 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0716×0.2148 mm (H×V) |
| Pixel Pitch : | 0.2148×0.2148 mm (H×V) |
| Weight : | 260g (Max.) |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Active Area : | 293.42×164.97 mm (H×V) |
| Outline Dimension : | 314.1×188.7 mm (H×V) |
| Outline Depth : | 3.0 (Max.) mm |
| Shape Style : | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets : | Face mounting holes (6 pcs) on left, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 8 (Typ.)(Tr+Td) |
| Viewing Angle : | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.67 (Max.)(5/13 points) |
| Sunlight Readable : | N |
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Life Time : | 15K(Min.) (Hours) |
| Interface Type : | Included in panel signal interface |
| Lamp Driver Board : | Embedded (LED Driver) |
| Lamp Driver Board : | 6.0/12.0/21.0V (Min./Typ./Max.) |
| Lamp Driver Board : | 2.19W (Max.) |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| C116NWR5-0 | IVO | 11.6" | 1366×768 |
| C024SN21-1 | IVO | 2.4" | 240×320 |
| C055SWF5-0 | IVO | 5.5" | 1080×1920 |
| C050SWA6-3 | IVO | 5.0" | 720×1280 |
| C050SWYG-0 | IVO | 5.0" | 480×854 |
| C050SWYD-2 | IVO | 5.0" | 480×854 |
| C054SWN1-2 | IVO | 5.4" | 540×960 |
