Product Details:
|
| Panel Size: | 18.1 Inch | Resolution: | 1280(LCR)×1024 , SXGA |
|---|---|---|---|
| Display Mode: | DD-IPS, Normally Black, Transmissive | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins |
| High Light: | industrial touch screen display,industrial lcd screen |
||
| Panel Size : | 18.1 inch |
| Dot Resolution : | 1280(LCR)×1024 (SXGA) |
| Pixel Configuration : | LCR Vertical Stripe |
| Pixel Density : | 90 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0935×0.2805 mm (H×V) |
| Pixel Pitch : | 0.2805×0.2805 mm (H×V) |
| Weight : | 2.90Kgs (Typ.) |
| Active Area : | 359.04×287.232 mm (H×V) |
| Bezel Area : | 367.0×295.2 mm (H×V) |
| Outline Dimension : | 389×317.2 mm (H×V) |
| Outline Depth : | 27.0 (Max.) mm |
| Holes & Brackets : | Side mounting holes (10-M3) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
| Display Mode : |
|
|
| Brightness : | 700 cd/m² (Typ.) | |
| Contrast Ratio : | 550 : 1 (Typ.) (Transmissive) | |
| Display Color : | Grayscale (8-bit) | |
| Response Time : | 40 (Typ.)(Tr+Td) | |
| Viewing Angle : | 85/85/85/85 (Min.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : | Wx:0.280; Wy:0.304 | |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| C043SWN1-2 | IVO | 4.3" | 480×800 |
| C039SWN1-3 | IVO | 4.0" | 320×480 |
| C090SWT-0 | IVO | 9.0" | 1024×600 |
| C060SWY2-1 | IVO | 6.0" | 480×854 |
| C070SWT8-0 | IVO | 7.0" | 1024×600 |
| C017SN81-1 | IVO | 1.8" | 128×160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok

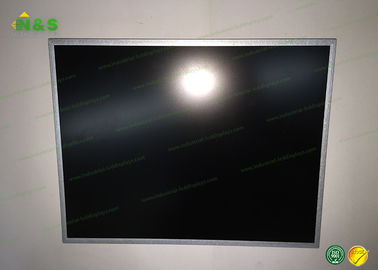

ITSX88E4 Picture
