Product Details:
|
| Panel Size :: | 10.1 Inch | Resolution :: | 1024(RGB)×600 , WSVGA |
|---|---|---|---|
| Active Area :: | 222.72×125.28 Mm | Surface :: | Antiglare, Hard Coating |
| Brightness :: | 200 Cd/m² (Typ.) | Signal Interface :: | LVDS (1 Ch, 6-bit) , 40 Pins |
| High Light: | industrial lcd screen,industrial lcd panel |
||

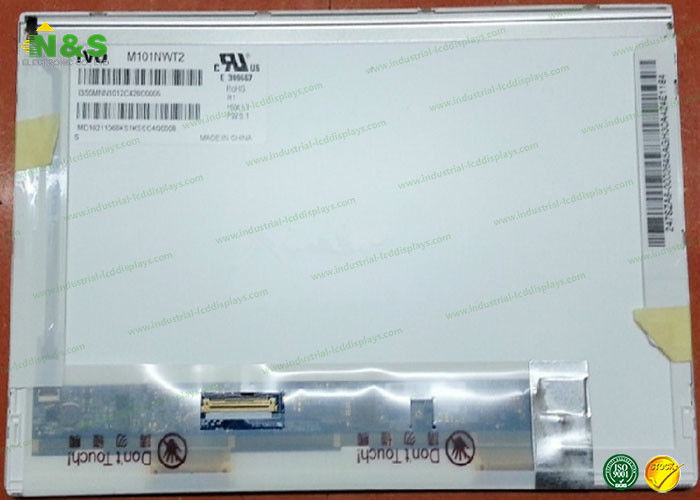

10.1 inch M101NWT2 R4 IVO LCM 1024×600 Normally White 60Hz
M101NWT2 R4 Information
| Panel Size : | 10.1 inch |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 117 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0725×0.2088 mm (H×V) |
| Pixel Pitch : | 0.2175×0.2088 mm (H×V) |
| Weight : | 180g (Max.) |
| Surface : | Antiglare, Hard coating |
| Active Area : | 222.72×125.28 mm (H×V) |
| Outline Dimension : | 243×146.5 mm (H×V) |
| Outline Depth : | 3.8 (Max.) mm |
| Shape Style : | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets : | Face mounting holes (8 pcs) on left, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 3/5 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.60 (Max.)(5/13 points) |
| Sunlight Readable : | N |
| Vertical Frequency : | 60Hz |
| Reverse Scan : | No |
| Total Power Consumption : | 2.8W (Max.) |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| P116NWR4 R0 | IVO | 11.6" | 1366×768 |
| C116NWR1 | IVO | 11.6" | 1366×768 |
| C050SWZ9 R1 | IVO | 5.0" | 540×960 |
| C050SWY2-3 | IVO | 4.9" | 480×854 |
| C050SWY2-1 | IVO | 4.9" | 480×854 |
| C045SWY2-0 | IVO | 4.5" | 480×854 |
| C046SWN1-0 | IVO | 4.6" | 480×854 |
| C028SN21-1 | IVO | 2.8" | 240×320 |
| C020SN91 | IVO | 2.0" | 176×220 |
