Product Details:
|
| Panel Size :: | 7.0 Inch | Resolution :: | 800(RGB)×480 , WVGA |
|---|---|---|---|
| Active Area :: | 153.6×86.64 Mm | Outline :: | 165×104×7.9 Mm |
| Surface :: | Antiglare, Hard Coating (3H) | Brightness :: | 350 Cd/m² (Typ.) |
| Contrast Ratio :: | 500:1 (Typ.) | Display Colors :: | 16.7M (8-bit) , CIE1931 50% |
| High Light: | industrial touch screen display,industrial lcd panel |
||

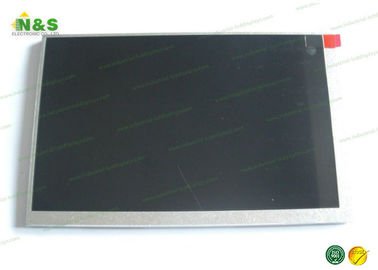

7.0 inch M070SWP1 R3 IVO with 153.6×86.64 mm Active Area 60Hz
M070SWP1 R3 Information
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 134 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.064×0.1805 mm (H×V) |
| Pixel Pitch : | 0.192×0.1805 mm (H×V) |
| Weight : | 179.5/193.9g (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 153.6×86.64 mm (H×V) |
| Bezel Area : | 156.0×89.04 mm (H×V) |
| Outline Dimension : | 165×104 mm (H×V) |
| Outline Depth : | 7.4±0.5 mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.43 (Max.)(9 points) |
| Sunlight Readable : | N |
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Life Time : | 20K(Min.) (Hours) |
| Interface Type : | Included in panel signal interface |
| Lamp Driver Board : | Embedded (LED Driver) |
| Lamp Driver Board : | 4.5/12.0/16.0V (Min./Typ./Max.) |
| Lamp Driver Board : | 2.1W (Max.) |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| C116NWR5-0 | IVO | 11.6" | 1366×768 |
| C024SN21-1 | IVO | 2.4" | 240×320 |
| C055SWF5-0 | IVO | 5.5" | 1080×1920 |
| C050SWA6-3 | IVO | 5.0" | 720×1280 |
| C050SWYG-0 | IVO | 5.0" | 480×854 |
| C050SWYD-2 | IVO | 5.0" | 480×854 |
| C054SWN1-2 | IVO | 5.4" | 540×960 |
