Product Details:
|
| Panel Size :: | 3.5 Inch | Resolution :: | 320(RGB)×240 , QVGA |
|---|---|---|---|
| Active Area :: | 70.08×52.56 Mm | Outline :: | 76.9×63.9×4.45 Mm |
| Surface :: | Hard Coating (3H) | Brightness :: | 320 Cd/m² (Typ.) |
| Highlight: | samsung lcd screen,samsung lcd panel replacement |
||

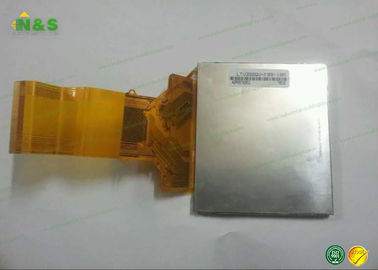

3.5 LTV350QV-F09 samsung lcd display panel LCM 320×240 320 Normally White
1.Payment
What are the terms of payments you offer?
Payment of the goods should be sent in USD or RMB on the basis of goods Values. We accept payment of T/T, Western Union, Money Gram, PayPal and cash only
2.Shipment
How long will it take to deliver goods?
We will deliver the goods within 3-5 days for spare parts, other goods maybe take a little more times to test and prepare, we will deliver the goods within the deadline which both parties agreed.
What kind of packaging you offer?
We will pack the goods well with exporting packages to make sure all goods in a good condition during storage and delivery.
What kind of transportation methods you offer?
A.We always use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies. But if buyers provide us accounts of their own, transportation fee paid by such accounts are also welcomed.
B.We also always transport by air and sea for the goods with large quantity, and we will confirm freight with buyers' prior delivery.
How about the insurance during transportation? How to deal with the responsibility?
Buyers should take the full responsibility for shortage of goods if the goods are checked by any custom during transportation. During transportation, if goods are missed because of having been detained by custom in China, all loss thus occurred should be borne by us; if missing or detained of goods are occurred in other country except China, all loss should be borne by buyers
What Locations can you ship to?
We can send the goods to the whole world if the express way can deliver it.
3.Goods Return
What conditions should be considered to return goods?
A.Goods were delivered by SR
B.Goods are within our warranty policy
How long will you take to deal with the returned goods?
We will provide the first feedback within 5 working days.
4.Others
What kind of problem will happen usually?
Some goods will be out of stock and cannot offer, because it cannot meet the quality request or really out of stock. Anyway we will contact the client to confirm well before shipping.
LTV350QV-F09 Information
| Panel Size : | 3.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 115 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.073×0.219 mm (H×V) |
| Pixel Pitch : | 0.219×0.219 mm (H×V) |
| Weight : | 43/48g (Typ./Max.) |
| Surface : | Hard coating (3H) |
| Active Area : | 70.08×52.56 mm (H×V) |
| Bezel Area : | 72.08×54.56 mm (H×V) |
| Outline Dimension : | 76.9×63.9 mm (H×V) |
| Outline Depth : | 4.25±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive, Film / Film-Glass) |
| Display Mode : | TN, Normally White, TMR |
| Brightness : | 320 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 60/60/50/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.330; Wy:0.370 |
| Sunlight Readable : | Y |
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Amount : | 6S1P |
| Lamp Shape : | 1 string |
| Lamp Current : | 20mA (Typ.) |
| Lamps Power Consumption : | 400mW (Typ.) |
| Interface Type : | Included in panel signal interface |
| Lamp Driver Board : | No |
Our services
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| SDC 1.63 320×320 | Samsung | 1.63" | 320×320 |
| AMS499QP42-0 | Samsung | 5.0" | 1080×1920 |
| AMS529BY01 | Samsung | 5.3" | 1080×1920 |
| AMS309PW03-0 | Samsung | 3.1" | 720×720 |
| AMS497QH02 | Samsung | 5.0" | 720×1280 |
| AMS497QH05 | Samsung | 5.0" | 720×1280 |
| AMS465GS52 | Samsung | 4.7" | 720×1280 |
| AMS465GS51 | Samsung | 4.7" | 720×1280 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Contact Person: Ms. Savvy Ren
Tel: +86-755-83055812
