Product Details:
|
| Panel Size :: | 8.4 Inch | Active Area :: | 170.4×127.8 Mm |
|---|---|---|---|
| Outline :: | 199.5×149.5 Mm | Response Time :: | 50/50 (Max.)(Tr/Td) |
| High Light: | industrial touch screen display,industrial lcd panel |
||

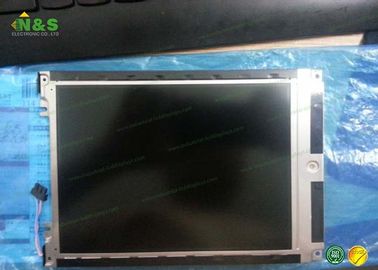

8.4 inch LTM08C351A TOSHIBA with 170.4×127.8 mm Active Area Normally White
LTM08C351A Information
| Panel Size : | 8.4 inch |
|---|---|
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 119 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.071×0.213 mm (H×V) |
| Pixel Pitch : | 0.213×0.213 mm (H×V) |
| Weight : | 370g (Typ.) |
| Active Area : | 170.4×127.8 mm (H×V) |
| Bezel Area : | 173.0×130.8 mm (H×V) |
| Outline Dimension : | 199.5×149.5 mm (H×V) |
| Outline Depth : | 12.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
LTM08C351A Information
| Lamp Position : | Edge light type (Top side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 2 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Replaceable : | Replaceable | |||||
| Lamp Voltage : | 445V (Typ.) | |||||
| Lamp Current : | 3.0/4.0/6.0mA (Min./Typ./Max.) | |||||
| Lamp Startup Voltage : | 910/1800V (Min./Max.)(Ta=0℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-04VS-1 | 4.0 mm | 4 pins | 1 pcs | BLL-4PINS-HHNL | |
| Lamp Driver Board : | No | |||||
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LT057AA34C00 | TOSHIBA | 5.7" | 320×240 |
| LT057AA34B00 | TOSHIBA | 5.7" | 320×240 |
| LTA106C211F | TOSHIBA | 10.6" | 1280×768 |
| LTD131EWHK | TOSHIBA | 13.1" | 1366×768 |
| LTM027MDL2100 | TOSHIBA | 2.7" | 480×320 |
| EDTCA39QRF | TOSHIBA | 5.8" | 400×234 |
| LT085AC18N00 | TOSHIBA | 8.5" | 800×480 |
| LTD121EA4G | TOSHIBA | 12.1" | 1024×768 |
