Product Details:
|
| Panel Size :: | 8.4 Inch | Resolution :: | 800(RGB)×600 , SVGA |
|---|---|---|---|
| Active Area :: | 170.4×127.8 Mm | Outline :: | 201.4×140.3 Mm |
| Brightness :: | 70 Cd/m² (Typ.) | Contrast Ratio :: | 250:1 (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||

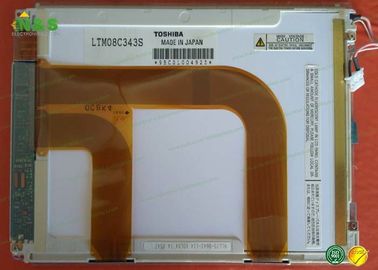

Normally White LTM08C343S TOSHIBA 8.4 inch 170.4×127.8 mm70 250:1 262K CCFL TTL
LTM08C343S Information
| Panel Size : | 8.4 inch |
|---|---|
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 119 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.071×0.213 mm (H×V) |
| Pixel Pitch : | 0.213×0.213 mm (H×V) |
| Weight : | 190g (Typ.) |
| Active Area : | 170.4×127.8 mm (H×V) |
| Bezel Area : | 173.4×130.8 mm (H×V) |
| Outline Dimension : | 201.4×140.3 mm (H×V) |
| Outline Depth : | 5.8 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ2.4) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTM08C343S Information
| Lamp Position : | Edge light type (Top side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 1 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Voltage : | 475±50V | |||||
| Lamp Current : | 2.2/2.7/5.0mA (Min./Typ./Max.) | |||||
| Lamp Startup Voltage : | 1000/1600V (Min./Max.)(Ta=0℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-HNL | |
| Lamp Driver Board : | No | |||||
We can do for You:
1. Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
LTM08C343S Information
| Vertical Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Total Power Consumption : | 2.1W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTD104XA1F | TOSHIBA | 10.4" | 1024×768 |
| EDTCA41 | TOSHIBA | 6.5" | 320×234 |
| LTD121KC5C | TOSHIBA | 12.1" | 1024×768 |
| TFD65W46 | TOSHIBA | 6.5" | 480×234 |
| LTD131EQ2A | TOSHIBA | 13.1" | 1600×900 |
| LT043MDY5000 | TOSHIBA | 4.3" | 720×1280 |
| LTM15C458-11 | TOSHIBA | 15.0" | 1024×768 |
| LTM018DG30 | TOSHIBA | 1.8" | 240×320 |
| LTD154EZ1D | TOSHIBA | 15.4" | 1920×1200 |
