Product Details:
|
| Panel Size :: | 12.1 Inch | Resolution :: | 1024(RGB)×768 , XGA |
|---|---|---|---|
| Active Area :: | 245.76×184.32 Mm | Outline :: | 269×199×6.5 Mm |
| High Light: | industrial lcd screen,industrial lcd panel |
||

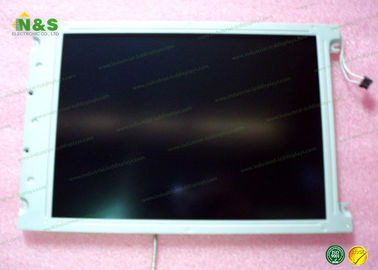

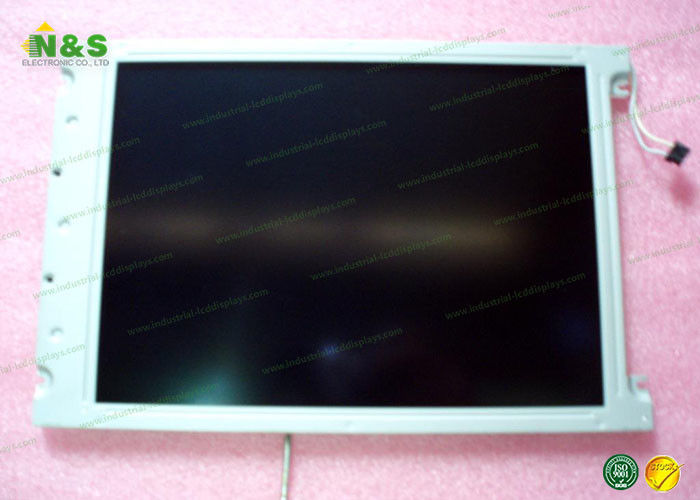

LTD121KA0S TOSHIBA Industrial LCD Displays Normally White 150 / 1 262K CCFL LVDS
LTD121KA0S Specification
| Panel Size : | 12.1 inch |
|---|---|
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 105 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.080×0.240 mm (H×V) |
| Pixel Pitch : | 0.240×0.240 mm (H×V) |
| Weight : | 280g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 245.76×184.32 mm (H×V) |
| Bezel Area : | 250.4×188.9 mm (H×V) |
| Outline Dimension : | 269×199 mm (H×V) |
| Outline Depth : | 6.5 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.0) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
3. Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4. long-term partner:
* Products are sold to more than 20 countries.
5. Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
LTD121KA0S Specification
| Lamp Position : | Edge light type (Bottom side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 1 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Voltage : | 625V (Typ.) | |||||
| Lamp Current : | 6.0mA (Typ.) | |||||
| Lamp Startup Voltage : | 1500/1800V (Min./Max.)(Ta=0℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |
| Lamp Driver Board : | No | |||||
LTD121KA0S Specification
| Signal Category : | LVDS | |||||
|---|---|---|---|---|---|---|
| Signal Class : | LVDS (1 ch, 6-bit) | |||||
| Input Voltage for Panel : | 3.3V (Typ.) | |||||
| Input Current for Panel : | 195mA (Typ.) | |||||
| Interface Type : | Connector | |||||
| Signal Interface : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF19L-20P-1H | 1.0 mm | 20 pins | 1 pcs | LVDS-20P1C6B-070A | |
