Product Details:
|
| Panel Size :: | 12.1 Inch | Resolution :: | 1280(RGB)×800 , WXGA |
|---|---|---|---|
| Active Area :: | 261.12×163.2 Mm | Outline :: | 268.1×180.2×4.27 Mm |
| Brightness :: | 300 Cd/m² (Typ.) | Contrast Ratio :: | 250:1 (Typ.) |
| High Light: | industrial touch screen display,industrial lcd panel |
||

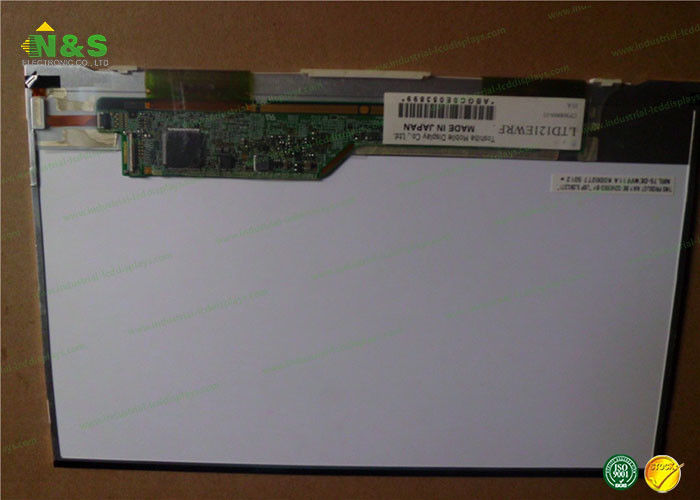

LTD121EWRF TOSHIBA 12.1 inch Normally White for Laptop panel
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
LTD121EWRF DETAIL
| Panel Size : | 12.1 inch |
|---|---|
| Dot Resolution : | 1280(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 124 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.068×0.204 mm (H×V) |
| Pixel Pitch : | 0.204×0.204 mm (H×V) |
| Weight : | 151g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 261.12×163.2 mm (H×V) |
| Outline Dimension : | 268.1×180.2 mm (H×V) |
| Outline Depth : | 2.65/4.27 (Typ.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTD121EWRF DETAIL
| Lamp Position : | Edge light type | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | WLED | |||||
| Lamp Amount : | 6 strings | |||||
| Lamp Voltage : | 22.5/27.9/33.0V (Min./Typ./Max.) | |||||
| Lamp Current : | 15mA (Typ.) | |||||
| Interface Type : | Included in panel signal interface | |||||
| Lamp Driver Board : | No | |||||
LTD121EWRF DETAIL
| Signal Category : | LVDS | |||||
|---|---|---|---|---|---|---|
| Signal Class : | LVDS (1 ch, 6-bit) | |||||
| Input Voltage for Panel : | 2.5V (Typ.) | |||||
| Input Current for Panel : | 290/400mA (Typ./Max.) | |||||
| Interface Type : | Connector | |||||
| Signal Interface : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20347-030E-02 | 0.4 mm | 30 pins | 1 pcs | LVDS-30P1C6B-020A | |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTD154EZ1D | TOSHIBA | 15.4" | 1920×1200 |
| LTD121EXUQ | TOSHIBA | 12.1" | 1280×800 |
| LTD104KA3V | TOSHIBA | 10.4" | 1024×768 |
| LT141DEVEP00 | TOSHIBA | 14.1" | 1280×800 |
| LTD131EWHK | TOSHIBA | 13.1" | 1366×768 |
| LTM027MDL2100 | TOSHIBA | 2.7" | 480×320 |
| EDTCA39QRF | TOSHIBA | 5.8" | 400×234 |
| LT085AC18N00 | TOSHIBA | 8.5" | 800×480 |
