Product Details:
|
| Panel Type :: | A-Si TFT-LCD , LCM | Panel Size :: | 12.1 Inch |
|---|---|---|---|
| Display Mode :: | TN, Normally White, Transmissive | Brightness :: | 380 Cd/m² (Typ.) |
| High Light: | industrial touch screen display,industrial lcd panel |
||

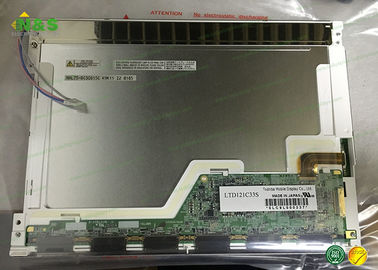

LTD121C34S TOSHIBA 12.1 inch Normally White 800×600 380 500:1 262K CCFL LVDS
LTD121C34S DETAIL
| Panel Size : | 12.1 inch |
|---|---|
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 82 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch : | 0.3075×0.3075 mm (H×V) |
| Weight : | 680g (Typ.) |
| Surface : | Reflection 1.33% (Typ.) |
| Active Area : | 246×184.5 mm (H×V) |
| Bezel Area : | 249.0×187.5 mm (H×V) |
| Outline Dimension : | 278.3×209 mm (H×V) |
| Outline Depth : | 11.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.4) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTD121C34S DETAIL
| Lamp Position : | Edge light type (Top side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 2 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Life Time : | 50K(Typ.) (Hours) | |||||
| Lamp Replaceable : | Replaceable | |||||
| Lamp Voltage : | 520V (Typ.) | |||||
| Lamp Current : | 3.0/6.5mA (Min./Max.) | |||||
| Lamp Startup Voltage : | 1200/1900V (Min./Max.)(Ta=0℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-04VS-1 | 4.0 mm | 4 pins | 1 pcs | BLL-4PINS-HHNL | |
