Product Details:
|
| Panel Type :: | A-Si TFT-LCD , LCM | Panel Size :: | 12.1 Inch |
|---|---|---|---|
| Resolution :: | 800(RGB)×600 , SVGA | Active Area :: | 246×184.5 Mm |
| Outline :: | 278.3×209×11 Mm | Brightness :: | 250 Cd/m² (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||

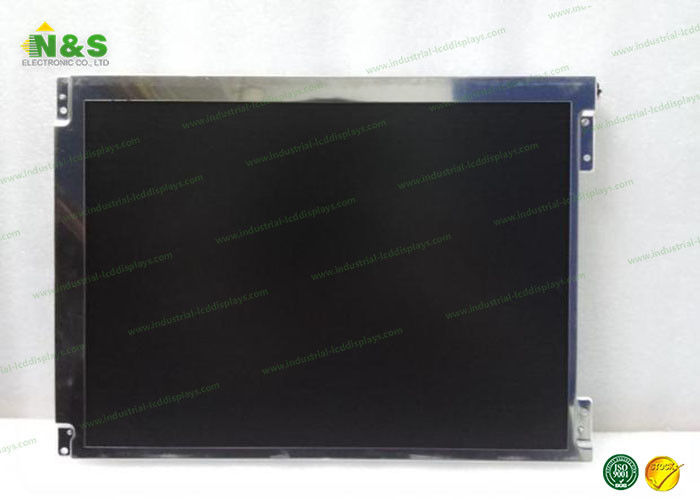

12.1 inch LTD121C32S TOSHIBA Normally White for Industrial Appication panel
LTD121C32S Information
| Panel Size : | 12.1 inch |
|---|---|
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 82 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch : | 0.3075×0.3075 mm (H×V) |
| Weight : | 670g (Typ.) |
| Active Area : | 246×184.5 mm (H×V) |
| Bezel Area : | 249.0×187.5 mm (H×V) |
| Outline Dimension : | 278.3×209 mm (H×V) |
| Outline Depth : | 11.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.4) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTD121C32S Information
| Lamp Position : | Edge light type (Top side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 2 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Life Time : | 50K(Typ.) (Hours) | |||||
| Lamp Replaceable : | Replaceable | |||||
| Lamp Voltage : | 520V (Typ.) | |||||
| Lamp Current : | 3.0/6.5mA (Min./Max.) | |||||
| Lamp Startup Voltage : | 1200/1900V (Min./Max.)(Ta=0℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-04VS-1 | 4.0 mm | 4 pins | 1 pcs | BLL-4PINS-HHNL | |
| Lamp Driver Board : | No | |||||
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
Our services
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LT141DEVEP00 | TOSHIBA | 14.1" | 1280×800 |
| LT121DEVCN00 | TOSHIBA | 12.1" | 1280×800 |
| LTM024DB40 | TOSHIBA | 2.4" | 240×320 |
| LTM022A97B | TOSHIBA | 2.2" | 240×320 |
| LT043MDQ6000 | TOSHIBA | 4.3" | 480×272 |
| TFD58W30MM | TOSHIBA | 5.8" | 400×234 |
| LT111EE06000 | TOSHIBA | 11.1" | 1366×768 |
