Product Details:
|
| Panel Size: | 12.1 Inch | Resolution: | 1280(RGB)×800 , WXGA |
|---|---|---|---|
| Display Mode: | AFFS, Normally Black, Transflective | Signal Interface: | EDP (1 Lane) , 30 Pins |
| High Light: | industrial lcd screen,industrial lcd panel |
||
| Panel Size : | 12.1 inch | |
| Dot Resolution : | 1280(RGB)×800 (WXGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 124 PPI | |
| Aspect Ratio : | 16:10 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.068×0.204 mm (H×V) | |
| Pixel Pitch : | 0.204×0.204 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare, Hard coating (3H), Antireflection | |
| Active Area : | 261.12×163.2 mm (H×V) | |
| Bezel Area : | 265.1×167.2 mm (H×V) | |
| Outline Dimension : | 276.8×180 mm (H×V) | |
| Outline Depth : | 3.9/6.8 (Typ./Max.) mm | |
| Holes & Brackets : | Side mounting holes (9-M2) on left, right, up bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| HX7308BTJFA | Himax | 0.45" | 1024×768 |
| HX7027ATGFA | Himax | 0.44" | 640×480 |
| HX7019ATGFA | Himax | 0.38" | 640×360 |
| Display Mode : |
|
|
| Brightness : | 300 cd/m² (Typ.) | |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K (6-bit) | |
| Color Gamut : | 42% NTSC (CIE1931) | |
| Response Time : | 30 (Typ.)(Tr+Td) | |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : | Wx:0.313; Wy:0.329 | |
| White Variation : |
|
|
| Reflectance Ratio : | 2.5/3.5% (Min./Typ.) | |
| Sunlight Readable : | Y |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.

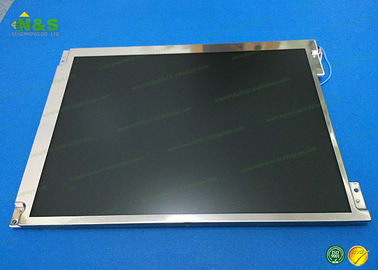

HX121WX1-120 Picture
