Product Details:
|
| Display Mode: | HVA, Normally Black, Transmissive | Display Colors: | 16.7M (8-bit) , CIE1931 62% |
|---|---|---|---|
| Frequency: | 60Hz | Signal Interface: | LVDS (1 Ch, 8-bit) , 30 Pins |
| Highlight: | tft lcd screen,tft lcd display module |
||
Normally Black CSOT MT3151A05-2 LCD Module 31.5 inch with 697.685×392.256 mm
MT3151A05-2 Detail
| Panel Brand : | CSOT |
| Panel Model : | MT3151A05-2 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 31.5 inch |
| Resolution : | 1366×768(RGB) , WXGA |
| Display Mode : | HVA, Normally Black, Transmissive |
| Active Area : | 697.685×392.256 mm |
| Outline : | 735.4×433 mm |
| Surface : | Antiglare (Haze 2%), Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 3000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 62% |
| Response Time : | 6.5 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 30 pins |
| Input Voltage : | 12.0V (Typ.) |
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
Packing & Delivery for our LCD Screen Panel Replacements:
| Panel Size : | 31.5 inch |
| Dot Resolution : | 1366×768(RGB) (WXGA) |
| Pixel Configuration : | RGB Horizontal Stripe |
| Pixel Density : | 49 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.51075×0.17025 mm (H×V) |
| Pixel Pitch : | 0.51075×0.51075 mm (H×V) |
| Weight : | 4.50Kgs (Max.) |
| Surface : | Antiglare (Haze 2%), Hard coating (3H) |
| Active Area : | 697.685×392.256 mm (H×V) |
| Bezel Area : | 705.4×400.0 mm (H×V) |
| Outline Dimension : | 735.4×433 mm (H×V) |
| Outline Depth : | 10.8 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ST4851B01-1 | CSOT | 49" | 1920×1080 |
| ST5461D01-4 | CSOT | 55" | 3840×2160 |
| ST5461B05-6 | CSOT | 55" | 1920×1080 |
| ST2151B01-1 | CSOT | 21.5" | 1920×1080 |
| ST4251B01-1 | CSOT | 43" | 1920×1080 |
| ST4761B01-7 | CSOT | 48" | 1920×1080 |
| ST5461D04-2 | CSOT | 55" | 3840×2160 |
| ST4761B02-1 | CSOT | 48" | 1920×1080 |
| ST5461D02-1 | CSOT | 55" | 3840×2160 |
| ST2751A01-8 | CSOT | 27.5" | 1366×768 |
| ST3151A05-9 | CSOT | 31.5" | 1366×768 |
| ST2751A01-6 | CSOT | 27.5" | 1366×768 |
| ST5461B05-2 | CSOT | 55" | 1920×1080 |
| ST5461B05-1 | CSOT | 55" | 1920×1080 |
| ST5461D02-2 | CSOT | 55" | 3840×2160 |
| ST3151A04-8 | CSOT | 31.5" | 1366×768 |

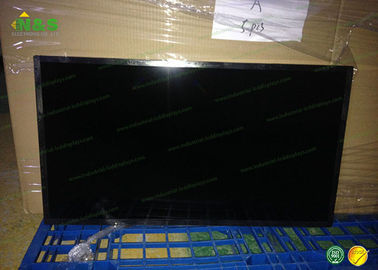

MT3151A05-2 CSOT LCD Module Picture
