Product Details:
|
| Outline: | 630×368.2×16.4 Mm | Active Area: | 597.888×336.312 Mm |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Resolution: | 1920(RGB)×1080 , FHD |
| Brightness: | 300 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) |
| Highlight: | tft lcd display,innolux lcd screen |
||
Hard coating M270HHF-L10 Innolux LCD Panel 27.0 inch with 597.888×336.312 mm
M270HHF-L10 Specification
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | M270HHF-L10 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 27.0 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 597.888×336.312 mm |
| Outline : | 630×368.2×16.4 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 0.8/2.6 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 120Hz |
| Lamp Type : | 4 strings WLED Without Driver |
| Signal Interface : | LVDS (4 ch, 8-bit) , 92 pins |
| Input Voltage : | 12.0V (Typ.) |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
| Panel Size : | 27.0 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 81 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1038×0.3114 mm (H×V) |
| Pixel Pitch : | 0.3114×0.3114 mm (H×V) |
| Weight : | 2.99/3.11Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 597.888×336.312 mm (H×V) |
| Bezel Area : | 603.9×342.29 mm (H×V) |
| Outline Dimension : | 630×368.2 mm (H×V) |
| Outline Depth : | 10.3/16.4 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| N156BGE-PB1 | Innolux | 15.6" | 1366×768 |
| PP050IC-01F | Innolux | 5.0" | 720×1280 |
| P060DDZ-ZZ1 | Innolux | 6.0" | 800×1280 |
| ME236NA-01A | Innolux | 23.6" | 1920×1080 |
| F055A07-601 | Innolux | 5.5" | 720×1280 |
| F050A07-6T2 | Innolux | 5.0" | 720×1280 |
| V650HP1-PS6 Rev.C6 | Innolux | 65" | 1920×1080 |
| P101LCA-3P1 | Innolux | 10.1" | 1920×1200 |
| V650HP2-PS5 | Innolux | 65" | 1920×1080 |
| N156HGE-DB1 | Innolux | 15.6" | 1920×1080 |
| V500DJ4-QS1 | Innolux | 50" | 3840×2160 |

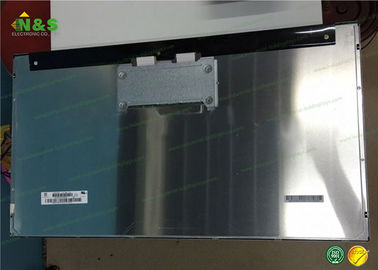

M270HHF-L10 Innolux LCD Panel Picture
