Product Details:
|
| Panel Model: | M240HW02 V5 | Panel Brand: | AUO |
|---|---|---|---|
| Panel Size: | 24.0 Inch | Panel Type: | A-Si TFT-LCD , LCM |
| Outline: | 556×323.2 Mm | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Display Colors: | 16.7M (8-bit) , CIE1931 72% | Surface: | Antiglare, Hard Coating (3H) |
| Highlight: | auo display panel,auo lcd display |
||
M240HW02 V5 AUO LCD Panel , hd tft display Landscape type with 531.36×298.89 mm
M240HW02 V5 Detail
| Panel Brand : | AUO |
| Panel Model : | M240HW02 V5 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 24.0 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | VA, Normally Black, Transmissive |
| Active Area : | 531.36×298.89 mm |
| Outline : | 556×323.2 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 5000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 7/5 (Typ.)(Tr/Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 120Hz |
| Lamp Type : | 20S4P×2CN WLED Without Driver |
| Signal Interface : | LVDS (4 ch, 8-bit) , 66 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 24.0 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 91 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.09225×0.27675 mm (H×V) |
| Pixel Pitch : | 0.27675×0.27675 mm (H×V) |
| Weight : | 2.76Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 531.36×298.89 mm (H×V) |
| Bezel Area : | 535.36×302.89 mm (H×V) |
| Outline Dimension : | 556×323.2 mm (H×V) |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
| T215HVN01.2 CELL | AUO | 21.5" | 1920×1080 |
| B070ATN02.0 CELL | AUO | 7.0" | 600×1024 |
| M238DAN01.3 CELL | AUO | 23.8" | 2560×1440 |
| B070AAN01.0 | AUO | 7.0" | 600×1024 |
| M238DAN01.1 CELL | AUO | 23.8" | 2560×1440 |
| M270DAN02.0 CELL | AUO | 27.0" | 2560×1440 |
| H598DAN03.0 | AUO | 6.0" | 1080×1920 |
| H546TAN02.3 | AUO | 5.5" | 720×1280 |
| G173HW01 V0 CELL | AUO | 17.3" | 1920×1080 |
| T320HVN05.A CELL | AUO | 31.5" | 1920×1080 |
| B080EAN04.1 CELL | AUO | 8.0" | 800×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

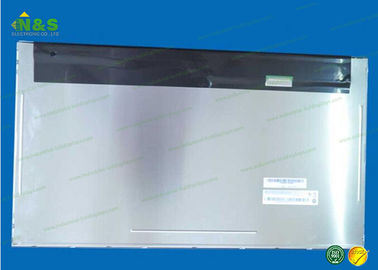

M240HW02 V5 AUO LCD Panel Picture
