Product Details:
|
| Panel Size: | 19.0 Inch | Resolution: | 1280(RGB)×1024 , SXGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins |
| High Light: | industrial lcd screen,industrial lcd panel |
||
| Panel Size : | 19.0 inch | |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 86 PPI | |
| Aspect Ratio : | 5:4 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.098×0.294 mm (H×V) | |
| Pixel Pitch : | 0.294×0.294 mm (H×V) | |
| Weight : | 2.35±0.12Kgs | |
| Surface : |
|
|
| Active Area : | 376.32×301.056 mm (H×V) | |
| Outline Dimension : | 404.2×330 mm (H×V) | |
| Outline Depth : | 19.0 (Typ.) mm | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
|
|
| Brightness : | 250 cd/m² (Typ.) | |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.2M (6-bit + FRC) | |
| Response Time : | 12 (Typ.)(Tr+Td) | |
| Viewing Angle : | 70/70/65/65 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 6 o'clock | |
| White color Chromaticity : | Wx:0.310; Wy:0.330 | |
| White Variation : |
|
|
| Sunlight Readable : | N |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| HSD043B8W2-C01 | HannStar | 4.3" | 480×800 |
| HSD070IDW3-A00-0299 | HannStar | 7.0" | 800×480 |
| HSD050F9W1-A00 | HannStar | 5.0" | 480×272 |
| HSD050FDW1-A00 | HannStar | 5.0" | 800×480 |
| HSD043F9W1-A00 | HannStar | 4.3" | 480×272 |
| HSD050B8W4-A00 | HannStar | 5.0" | 480×854 |
| HSD050B8W7-C00 | HannStar | 5.0" | 480×854 |
| HSD070FHW1-D00 | HannStar | 7.0" | 720×1280 |
| HSD050B8W2-C00 | HannStar | 5.0" | 480×854 |
| HSD047BHW1-D00 | HannStar | 4.7" | 720×1280 |
| HSD047BMW1-C00 | HannStar | 4.7" | 540×960 |
| HSD045BMW3-D00 | HannStar | 4.5" | 540×960 |
| HSD045BMW2-C00 | HannStar | 4.5" | 540×960 |
| HSD045F8W5-D00 | HannStar | 4.5" | 480×854 |
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.

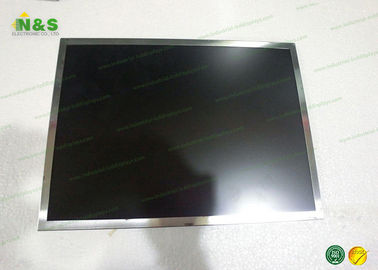

HSD190ME12-A02 Picture
