Product Details:
|
| Panel Size: | 12.1 Inch | Resolution: | 800(RGB)×600 , SVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | LVDS (1 Ch, 6-bit) , 20 Pins |
| High Light: | industrial lcd screen,industrial lcd panel |
||
|
12.1 inch | |
| Dot Resolution : | 800(RGB)×600 (SVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 82 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.1025×0.3075 mm (H×V) | |
| Pixel Pitch : | 0.3075×0.3075 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare, Hard coating (3H) | |
| Active Area : | 246×184.5 mm (H×V) | |
| Bezel Area : | 249.8×188.5 mm (H×V) | |
| Outline Dimension : | 276.2×209.5 mm (H×V) | |
| Outline Depth : | 13.27 (Typ.) mm | |
| Holes & Brackets : | Face mounting holes (4-Φ3.4) on left, right bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
|
|
| Brightness : | 400 cd/m² (Typ.) | |
| Contrast Ratio : | 350 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K (6-bit) | |
| Response Time : | 25 (Typ.)(Tr+Td) | |
| Viewing Angle : | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 6 o'clock | |
| White color Chromaticity : |
|
|
| White Variation : | 1.43 (Max.)(9 points) | |
| Sunlight Readable : | N |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TF022TUYC8 | TPO | 2.2" | 240×320 |
| HSD040B8W5-B00 | HannStar | 4.0" | 480×800 |
| HSD035B8W2-A00 | HannStar | 3.5" | 480×800 |
| HSD043B8W2-B01 | HannStar | 4.3" | 480×800 |
| HSD043B8W2-A01 | HannStar | 4.3" | 480×800 |
| HSD101PFW5-B11-0220 | HannStar | 10.1" | 1024×600 |
| HSD090IDW1-A01-0299 | HannStar | 9.0" | 800×480 |
| HSD035F8N1-B00 | HannStar | 3.5" | 320×240 |
| HSD032F3N2-A00 | HannStar | 3.2" | 240×320 |
| HSD030F3W1-B00 | HannStar | 3.0" | 240×400 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

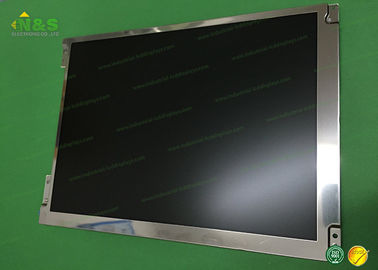

HSD121MS11-A Picture
