Product Details:
|
| Frequency: | 60Hz | Lamp Type: | WLED |
|---|---|---|---|
| Response Time: | 7/5 (Typ.)(Tr/Td) | Contrast Ratio: | 3000:1 (Typ.) |
| BrightnessActive Area: | 280 Cd/m² (Typ.) | Active Area: | 531.36×298.89 Mm |
| Surface: | Antiglare, Hard Coating (3H) | Resolution: | 1920(RGB)×1080 , FHD |
| Highlight: | auo display panel,auo lcd display |
||
24.0 inch Hard coating M240HVN03.0 AUO LCD Panel with 531.36×298.89 mm Active Area
M240HVN03.0 Information
| Panel Brand : | AUO |
| Panel Model : | M240HVN03.0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 24.0 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | VA, Normally Black, Transmissive |
| Active Area : | 531.36×298.89 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 280 cd/m² (Typ.) |
| Contrast Ratio : | 3000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 7/5 (Typ.)(Tr/Td) |
| Viewing Angle : | |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 24.0 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 91 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.09225×0.27675 mm (H×V) |
| Pixel Pitch : | 0.27675×0.27675 mm (H×V) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 531.36×298.89 mm (H×V) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| M238DAN01.1 CELL | AUO | 23.8" | 2560×1440 |
| M270DAN02.0 CELL | AUO | 27.0" | 2560×1440 |
| H598DAN03.0 | AUO | 6.0" | 1080×1920 |
| H546TAN02.3 | AUO | 5.5" | 720×1280 |
| G173HW01 V0 CELL | AUO | 17.3" | 1920×1080 |
| T320HVN05.A CELL | AUO | 31.5" | 1920×1080 |
| B080EAN04.1 CELL | AUO | 8.0" | 800×1280 |
| T500HVN08.8 CELL | AUO | 50" | 1920×1080 |
| H546DAN01.5 | AUO | 5.5" | 1080×1920 |
| H546DAN08.0 | AUO | 5.5" | 1080×1920 |
| B080XAN03.5 | AUO | 7.9" | 768×1024 |
| B080XAN03.2 | AUO | 7.9" | 768×1024 |
| H499TAN05.0 | AUO | 5.0" | 720×1280 |

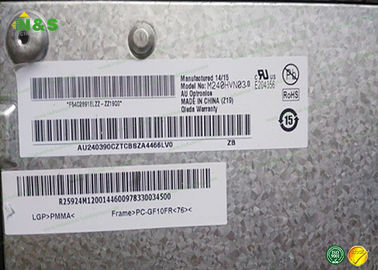

M240HVN03.0 AUO LCD Panel Picture
