Product Details:
|
| Panel Type: | CSTN-LCD , LCM | Panel Size: | 5.7 Inch |
|---|---|---|---|
| Resolution: | 320(RGB)×240 , QVGA | Display Mode: | STN, Normally Black, Transmissive |
| Active Area: | 115.18×86.38 Mm | Outline: | 154.6×114.8 Mm |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||

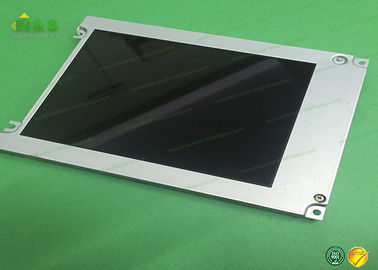

Normally Black LM057QC1T01 Sharp LCD Panel 5.7 inch for Industrial Appication panel
LM057QC1T01 Specification
| Panel Size : | 5.7 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 70 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.120×0.360 mm (H×V) |
| Pixel Pitch : | 0.360×0.360 mm (H×V) |
| Weight : | 200g (Typ.) |
| Active Area : | 115.18×86.38 mm (H×V) |
| Bezel Area : | 121.3×92.6 mm (H×V) |
| Outline Dimension : | 154.6×114.8 mm (H×V) |
| Outline Depth : | 8.3±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.2, 2-R1.6) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | STN, Normally Black, Transmissive |
| Brightness : | 180 cd/m² (Typ.) |
| Contrast Ratio : | 40 : 1 (Typ.) (Transmissive) |
| Display Color : | Color () |
| Response Time : | 450/100 (Typ.)(Tr/Td) |
| Viewing Angle : | 50/50/35/60 (Typ.)(CR≥2) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.320; Wy:0.330 |
| Sunlight Readable : | N |
