Product Details:
|
| Panel Type: | IGZO TFT-LCD , LCM | Panel Size: | 4.7 Inch |
|---|---|---|---|
| Resolution: | 1080(RGB)×1920 , FHD | Display Mode: | New Mode2, Normally Black, Transmissive |
| Active Area: | 57.996×103.104 Mm | Outline: | 60.4×112.2×1.48 Mm |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

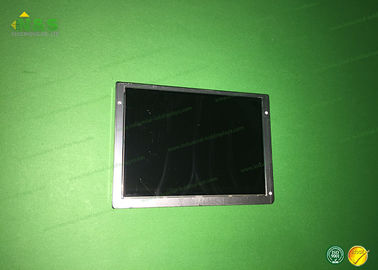

LQ030B1DC50J Sharp LCD Panel 4.7"LCM 1080×1920 470 1000:1 16.7M WLED MIPI
LQ030B1DC50J Specification
| Panel Size : | 4.7 inch |
| Dot Resolution : | 1080(RGB)×1920 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 473 PPI |
| Aspect Ratio : | 9:16 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0179×0.0537 mm (H×V) |
| Pixel Pitch : | 0.0537×0.0537 mm (H×V) |
| Weight : | 19.0g |
| Active Area : | 57.996×103.104 mm (H×V) |
| Outline Dimension : | 60.4×112.2 mm (H×V) |
| Outline Depth : | 1.38±0.1 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
| Display Mode : | New Mode2, Normally Black, Transmissive |
| Brightness : | 470 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 71% NTSC (CIE1931) |
| Response Time : | 35 (Max.)(Tr+Td) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.300; Wy:0.320 |
| White Variation : | 1.33 (Max.)(9 points) |
| Sunlight Readable : | N |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up
your case.
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
