Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.5 Inch |
|---|---|---|---|
| Resolution: | 1080(RGB)×1920 , FHD | Display Mode: | New Mode2, Normally Black, Transmissive |
| Active Area: | 68.04×120.96 Mm | Outline: | 70.84×128.56×1.65 Mm |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||

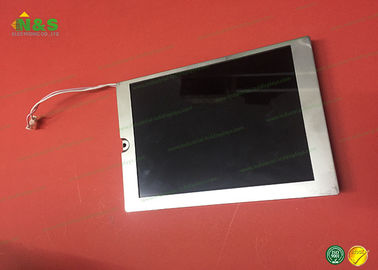

5.5 inch LQ055T3SX02 Sharp LCD Panel Normally Black with 68.04×120.96 mm Active Area
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
LQ055T3SX02 Specification
| Panel Size : | 5.5 inch |
| Dot Resolution : | 1080(RGB)×1920 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 403 PPI |
| Aspect Ratio : | 9:16 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.021×0.063 mm (H×V) |
| Pixel Pitch : | 0.063×0.063 mm (H×V) |
| Weight : | 23g (Typ.) |
| Active Area : | 68.04×120.96 mm (H×V) |
| Outline Dimension : | 70.84×128.56 mm (H×V) |
| Outline Depth : | 1.5±0.15 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
| Display Mode : | New Mode2, Normally Black, Transmissive |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 70% NTSC (CIE1931) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.300; Wy:0.310 |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
