Product Details:
|
| Panel Size: | 7.0 Inch | Resolution: | 1024(RGB)×600 , WSVGA |
|---|---|---|---|
| Display Mode: | HS-IPS, Normally Black, Transmissive | Signal Interface: | LVDS (1 Ch, 8-bit) + SPI , 30 Pins |
| High Light: | industrial touch screen display,industrial lcd screen |
||
| Panel Size : | 7.0 inch | |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 169 PPI | |
| Aspect Ratio : | 17:10 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.050×0.150 mm (H×V) | |
| Pixel Pitch : | 0.150×0.150 mm (H×V) | |
| Weight : | 90/95g (Typ./Max.) | |
| Surface : |
|
|
| Active Area : | 153.6×90 mm (H×V) | |
| Outline Dimension : | 162.8×102.9 mm (H×V) | |
| Outline Depth : | 2.47±0.2 mm | |
| Holes & Brackets : | Face mounting holes (8 pcs) on left, right, up, down slugs | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
|
|
| Brightness : | 400 cd/m² (Typ.) | |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (6-bit + Hi-FRC) | |
| Color Gamut : | 50% NTSC (CIE1931) | |
| Response Time : | 30 (Typ.)(Tr+Td) | |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : | Wx:0.310; Wy:0.340 | |
| Sunlight Readable : | N |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD020F2N7-A | HannStar | 2.0" | 176×220 |
| HSD019F2N1-A | HannStar | 1.9" | 220×176 |
| HSD018F2N4-A | HannStar | 1.8" | 220×176 |
| HSD070BDW3-A00 | HannStar | 7.0" | 800×480 |
| HSD050B8W2-C10 | HannStar | 5.0" | 480×854 |
| HSD045B8W1-C11 | HannStar | 4.5" | 480×854 |
| HSD045B8W1-B11 | HannStar | 4.5" | 480×854 |
| HSD045B8W1-A11 | HannStar | 4.5" | 480×854 |
| HSD062IDW1-A02-0299 | HannStar | 6.2" | 800×480 |
| HSD060BMW1-A00 | HannStar | 6.0" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.

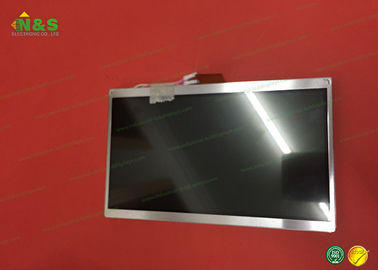

HSD070PFW2-A00 Picture
