Product Details:
|
| Panel Size: | 8.0 Inch | Resolution: | 800(RGB)×600 , SVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | LVDS (1 Ch, 6-bit) , 20 Pins |
| High Light: | industrial touch screen display,industrial lcd screen |
||
| Panel Size : | 8.0 inch | |
| Dot Resolution : | 800(RGB)×600 (SVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 125 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.0675×0.2025 mm (H×V) | |
| Pixel Pitch : | 0.2025×0.2025 mm (H×V) | |
| Weight : | 258g | |
| Surface : |
| |
| Active Area : | 162×121.5 mm (H×V) | |
| Bezel Area : | 164.8×124.3 mm (H×V) | |
| Outline Dimension : | 183×141 mm (H×V) | |
| Outline Depth : | 5.6/9.3 (Typ./Max.) mm | |
| Holes & Brackets : | Without | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
| |
| Brightness : | 250 cd/m² (Typ.) | |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K (6-bit) | |
| Response Time : | 10/15 (Typ.)(Tr/Td) | |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 6 o'clock | |
| White color Chromaticity : | Wx:0.310; Wy:0.330 | |
| White Variation : |
| |
| Sunlight Readable : | N |
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED043WC1 | E Ink | 4.3" | 480×800 |
| ED043WC3 | E Ink | 4.3" | 480×800 |
| ED060XD6 | E Ink | 6.0" | 758×1024 |
| SMA058HRG1 | E Ink | 5.8" | 600×448 |
| SMA058H7G1 | E Ink | 5.8" | 600×448 |
| ED035OC1 | E Ink | 3.5" | 360×600 |
| ET014TT1 | E Ink | 1.43" | 128×296 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.

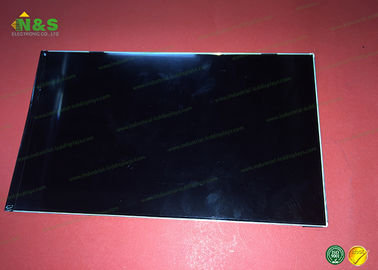

FG080074DSSWBG01 Picture
