Product Details:
|
| Panel Size: | 6.5 Inch | Resolution: | 800(RGB)×600 , SVGA |
|---|---|---|---|
| Display Modetion: | TN, Normally White, Transmissive | Outline: | 153×118 Mm |
| Active Area: | 132×99 Mm | Panel Type: | A-Si TFT-LCD , LCM |
| High Light: | nec tft lcd,nec lcd screen |
||
132×99 mm NL8060BC16-01 NEC LCD Panel 6.5 inch Normally White
NL8060BC16-01 Product Information
| Panel Size : | 6.5 inch |
|---|---|
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 153 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.055×0.165 mm (H×V) |
| Pixel Pitch : | 0.165×0.165 mm (H×V) |
| Weight : | 150/160g (Typ./Max.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 132×99 mm (H×V) |
| Bezel Area : | 135.5×102.4 mm (H×V) |
| Outline Dimension : | 153×118 mm (H×V) |
| Outline Depth : | 8.2 (Typ.) mm |
| Holes & Brackets : | Side mounting holes (4-M2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Display Mode : | TN, Normally White, Transflective |
|---|---|
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 150 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 15:1 (Typ.) (Reflective) |
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 8/22 (Typ.)(Tr/Td) |
| Viewing Angle : | 25/25/25/25 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
| Reflectance Ratio : | 35% (Typ.) |
| Sunlight Readable : | Y |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
| ED060SCT | E Ink | 6.0" | 600×800 |
| ET043OC1 | E Ink | 4.4" | 360×640 |
| EN133UT1 | E Ink | 13.3" | 1600×1200 |
| ED047TC1 | E Ink | 4.7" | 540×960 |
| ED133UT1 | E Ink | 13.3" | 1600×1200 |
| ES133UT1 | E Ink | 13.3" | 1600×1200 |
| ED060SCQ | E Ink | 6.0" | 600×800 |
| ED097OD2 | E Ink | 9.7" | 1200×825 |
| ED060KG1 | E Ink | 6.0" | 1072×1448 |
| ED060KC1 | E Ink | 6.0" | 1072×1448 |
| ED060XC9 | E Ink | 6.0" | 758×1024 |
| ED060XD7 | E Ink | 6.0" | 758×1024 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

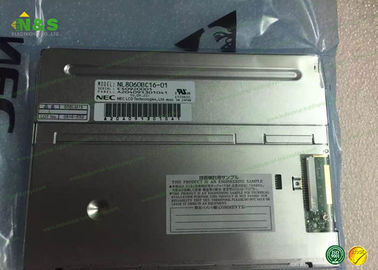

NL8060BC16-01 Picture
