Product Details:
|
| Resolution: | 400(RGB)×234 | Panel Size: | 5.8 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Active Area: | 127.2×71.8 Mm |
| Display Mode: | TN, Normally White, Transmissive | Response Time: | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle: | 65/65/40/65 (Typ.)(CR≥5) (L/R/U/D) | Frequency: | 60Hz |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
Normally White LQ6BW504 5.8 inch Sharp LCD Panel LCM 400×234 60:1 CCFL Analog
LQ6BW504 Specification
| Panel Size : | 5.8 inch |
| Dot Resolution : | 400(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 80 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.106×0.307 mm (H×V) |
| Pixel Pitch : | 0.318×0.307 mm (H×V) |
| Surface : | Antiglare, Antireflection |
| Active Area : | 127.2×71.8 mm (H×V) |
| Holes & Brackets : | Rear mounting holes (4-Ф2.0) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Contrast Ratio : | 60 : 1 (Min.) (Transmissive) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/40/65 (Typ.)(CR≥5) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| Sunlight Readable : | N |
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

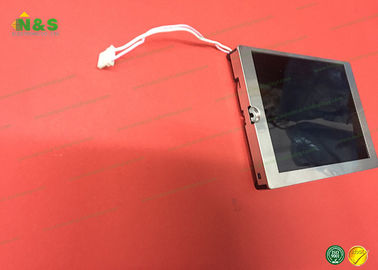

LQ6BW504 Picture
