Product Details:
|
| Panel Size: | 8.4 Inch | Resolution: | 640(RGB)×480 (VGA) |
|---|---|---|---|
| Display Modetion: | TN, Normally White, Transmissive | Active Area: | 170.88×128.16 Mm |
| Outline :: | 200×152 Mm | Panel Type: | A-Si TFT-LCD , LCM |
| High Light: | nec tft lcd,nec lcd screen |
||
8.4 inch NL6448BC26-20F NEC LCD Panel Normally White for Industrial Application
NL6448BC26-20F Detail
| Panel Size : | 8.4 inch |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 95 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.089×0.267 mm (H×V) |
| Pixel Pitch : | 0.267×0.267 mm (H×V) |
| Weight : | 330/350g (Typ./Max.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 170.88×128.16 mm (H×V) |
| Bezel Area : | 174.0×131.4 mm (H×V) |
| Outline Dimension : | 200×152 mm (H×V) |
| Outline Depth : | 8.2±0.5 mm |
| Holes & Brackets : | Face mounting holes (4-Ф2.8) on left, right bezel |
| Landscape or Portrait : | Landscape / Portrait |
| Touch Panel : |
Without |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED043WC1 | E Ink | 4.3" | 480×800 |
| ED043WC3 | E Ink | 4.3" | 480×800 |
| ED060XD6 | E Ink | 6.0" | 758×1024 |
| SMA058HRG1 | E Ink | 5.8" | 600×448 |
| SMA058H7G1 | E Ink | 5.8" | 600×448 |
| ED035OC1 | E Ink | 3.5" | 360×600 |
| ET014TT1 | E Ink | 1.43" | 128×296 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 800 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 3/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
| Sunlight Readable : |
Y |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.

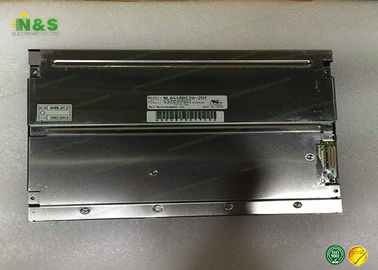

NL6448BC26-20F Picture
