Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Resolution: | 1920(RGB)×1080 , FHD |
|---|---|---|---|
| Surface: | Antiglare, Hard Coating (3H) | Active Area: | 509.184×286.416 Mm |
| Outline: | 533.2×312 Mm | Brightness: | 250 Cd/m² (Typ.) |
| Contrast Ratio: | 1000:1 (Typ.) | Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Highlight: | tft lcd display,innolux lcd screen |
||
Normally White M230HGE-L20 23.0 inch Innolux LCD Panel Landscape type with 509.184×286.416 mm
M230HGE-L20 Specification
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | M230HGE-L20 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 23.0 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 509.184×286.416 mm |
| Outline : | 533.2×312 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 14S4P WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
| Panel Size : | 23.0 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 95 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0884×0.2652 mm (H×V) |
| Pixel Pitch : | 0.2652×0.2652 mm (H×V) |
| Weight : | 2.20/2.30Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 509.184×286.416 mm (H×V) |
| Bezel Area : | 513.784×291.016 mm (H×V) |
| Outline Dimension : | 533.2×312 mm (H×V) |
| Outline Depth : | 11.0±0.5 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| V650DJ4-QS5 Rev.M1 | Innolux | 65" | 3840×2160 |
| N080ICP-G01 CELL | Innolux | 8.0" | 800×1280 |
| DE080NA-01D | Innolux | 8.0" | 800×480 |
| AT080YN01 | Innolux | 8.0" | 1024×600 |
| PG055IA-03H | Innolux | 5.5" | 720×1280 |
| PP057IC-01A | Innolux | 5.7" | 1080×1920 |
| PG055IC-07F | Innolux | 5.5" | 1080×1920 |
| PB050IC-01D | Innolux | 5.0" | 1080×1920 |
| PG050IA-02A | Innolux | 5.0" | 540×960 |
| V400DK1-QE2 | Innolux | 40" | 3840×2160 |
| V650DK1-QS3 | Innolux | 65" | 3840×2160 |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.

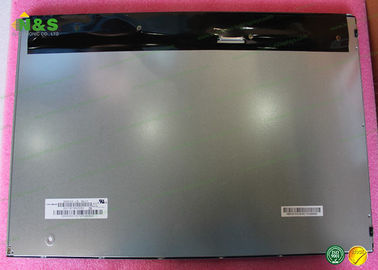

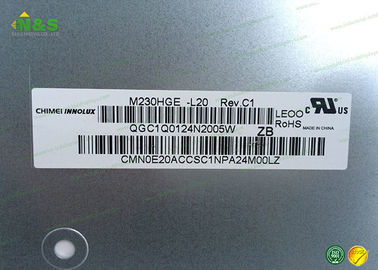

M230HGE-L20 Innolux LCD Panel Picture
