Product Details:
|
| Resolution: | 320(RGB)×220 | Panel Size: | 2.7 Inch |
|---|---|---|---|
| Panel Type: | CG-Silicon , LCM | Display Mode: | TN, Normally White, Transflective |
| Active Area: | 59.01×33 Mm | Outline: | 64.1×43.135 Mm |
| Surface: | Hard Coating (2H) | Contrast Ratio: | 200:1 (Typ.)(Transmissive) 9.5:1 (Typ.)(Reflective) |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
SHARP LS027T8FD02 LCD Panel 2.7 inch Hard coating with 59.01×33 mm
LS027T8FD02 Specification
| Panel Size : | 2.7 inch | |||||||||||||||||||
| Dot Resolution : | 320(RGB)×220 | |||||||||||||||||||
| Pixel Configuration : | RGB Delta | |||||||||||||||||||
| Pixel Density : | 145 PPI | |||||||||||||||||||
| Aspect Ratio : | 16:9 (H:V) | |||||||||||||||||||
|
Flat Rectangle Display | |||||||||||||||||||
| Dot Pitch : | 0.0615×0.1844 mm (H×V) | |||||||||||||||||||
|
17.7g (Max.) | |||||||||||||||||||
| Surface : | Hard coating (2H) | |||||||||||||||||||
|
59.01×33 mm (H×V) | |||||||||||||||||||
| Outline Dimension : | 64.1×43.135 mm (H×V) | |||||||||||||||||||
|
2.144 mm | |||||||||||||||||||
| Landscape or Portrait : | Landscape type | |||||||||||||||||||
|
Without | |||||||||||||||||||
| Display Mode : | TN, Normally White, Transflective | |||||||||||||||||||
| Contrast Ratio : | 200 : 1 (Typ.) (Transmissive) | |||||||||||||||||||
| Contrast Ratio : | 9.5:1 (Typ.) (Reflective) | |||||||||||||||||||
|
Full color () | |||||||||||||||||||
| Color Gamut : | 70% NTSC (CIE1931) | |||||||||||||||||||
| Response Time : | 20/40 (Typ.)(Tr/Td) | |||||||||||||||||||
| Viewing Angle : | 35/35/30/50 (Typ.)(CR≥10) (L/R/U/D) | |||||||||||||||||||
|
5.47% (Typ.)(with Polarizer) | |||||||||||||||||||
|
1.3/2.0% (Min./Typ.) | |||||||||||||||||||
| Sunlight Readable : | Y | |||||||||||||||||||
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Packing & Delivery for our LCD Screen Panel Replacements:
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

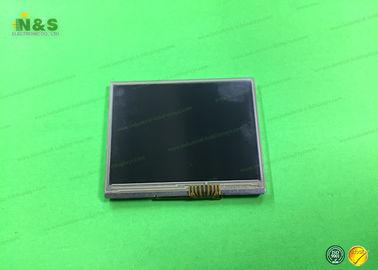

LS027T8FD02 Picture
