Product Details:
|
| Resolution: | 240(RGB)×400 , WQVGA | Panel Size: | 2.6 Inch |
|---|---|---|---|
| Panel Type: | CG-Silicon , LCM | Display Mode: | ASV, Normally Black, Transflective |
| Active Area: | 33.84×56.4 Mm | Outline: | 40.8×68.1×2.4 Mm |
| Brightness: | 200 Cd/m² (Typ.) | Contrast Ratio: | 260:1 (Typ.)(Transmissive) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
Normally Black LS026B8PX02 2.6 inch Sharp LCD Panel 60Hz with 33.84×56.4 mm
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
LS026B8PX02 Specification
| Panel Size : | 2.6 inch | |||||||||||||||||||
| Dot Resolution : | 240(RGB)×400 (WQVGA) | |||||||||||||||||||
| Pixel Configuration : | RGB Vertical Stripe | |||||||||||||||||||
| Pixel Density : | 180 PPI | |||||||||||||||||||
| Aspect Ratio : | 3:5 (H:V) | |||||||||||||||||||
|
Flat Rectangle Display | |||||||||||||||||||
| Dot Pitch : | 0.047×0.141 mm (H×V) | |||||||||||||||||||
|
0.141×0.141 mm (H×V) | |||||||||||||||||||
| Weight : | 12.0g | |||||||||||||||||||
|
33.84×56.4 mm (H×V) | |||||||||||||||||||
| Outline Dimension : | 40.8×68.1 mm (H×V) | |||||||||||||||||||
|
2.3±0.1 mm | |||||||||||||||||||
| Landscape or Portrait : | Portrait type | |||||||||||||||||||
|
Without | |||||||||||||||||||
| Display Mode : | ASV, Normally Black, Transflective | |||||||||||||||||||
| Brightness : | 200 cd/m² (Typ.) | |||||||||||||||||||
| Contrast Ratio : | 260 : 1 (Typ.) (Transmissive) | |||||||||||||||||||
|
262K () | |||||||||||||||||||
| Response Time : | 13/18 (Typ.)(Tr/Td) | |||||||||||||||||||
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) | |||||||||||||||||||
| Viewing Direction : | Symmetry | |||||||||||||||||||
|
Wx:0.300; Wy:0.320 | |||||||||||||||||||
|
1.0/2.0% (Min./Typ.) | |||||||||||||||||||
| Sunlight Readable : | Y | |||||||||||||||||||
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.

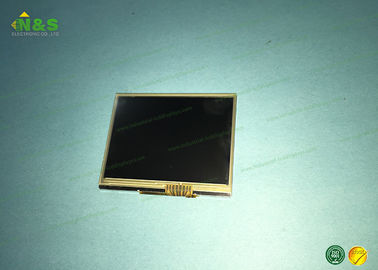

LS026B8PX02 Picture
