Product Details:
|
| Resolution: | 240(RGB)×320 , QVGA | Panel Size: | 2.4 Inch |
|---|---|---|---|
| Panel Type: | CG-Silicon , LCM | Display Mode: | Normally Black, Transmissive |
| Active Area: | 36.72×48.96 Mm | Outline: | 41.2×58 Mm |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
2.4 inch LS024Q8DD92 Sharp LCD Panel CELL 240×320 0 100:1 65K/262K No B/L TTL
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
LS024Q8DD92 Product Information
| Panel Size : | 2.4 inch | |||||||||||||||||||
| Dot Resolution : | 240(RGB)×320 (QVGA) | |||||||||||||||||||
| Pixel Configuration : | RGB Vertical Stripe | |||||||||||||||||||
| Pixel Density : | 166 PPI | |||||||||||||||||||
| Aspect Ratio : | 3:4 (H:V) | |||||||||||||||||||
|
Flat Rectangle Display | |||||||||||||||||||
| Dot Pitch : | 0.051×0.153 mm (H×V) | |||||||||||||||||||
|
0.153×0.153 mm (H×V) | |||||||||||||||||||
| Weight : | 8g (Typ.) | |||||||||||||||||||
|
Hard coating (3H) | |||||||||||||||||||
| Active Area : | 36.72×48.96 mm (H×V) | |||||||||||||||||||
|
41.2×58 mm (H×V) | |||||||||||||||||||
| Outline Depth : | 1.67 (Typ.) mm | |||||||||||||||||||
|
Portrait type | |||||||||||||||||||
| Touch Panel : | Without | |||||||||||||||||||
| Display Mode : | TN, Normally White, Transflective | |||||||||||||||||||
| Brightness : | 0 cd/m² | |||||||||||||||||||
|
100 : 1 (Typ.) (Transmissive) | |||||||||||||||||||
| Contrast Ratio : | 8:1 (Typ.) (Reflective) | |||||||||||||||||||
| Display Color : | 65K/262K () | |||||||||||||||||||
| Response Time : | 13/35 (Typ.)(Tr/Td) | |||||||||||||||||||
|
45/45/35/45 (Typ.)(CR≥3) (L/R/U/D) | |||||||||||||||||||
|
1.4/2.0% (Min.Typ.) | |||||||||||||||||||
| Sunlight Readable : | Y | |||||||||||||||||||
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed

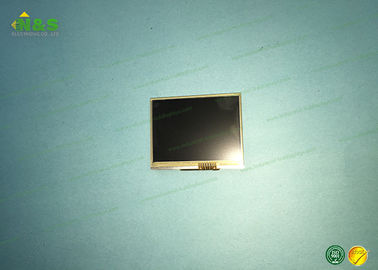

LS024Q8DD92 Picture
Contact Person: savvy,ren
Tel: +8613302928193
