Product Details:
|
| Resolution: | 320(RGB)×240 , QVGA | Panel Size: | 2.4 Inch |
|---|---|---|---|
| Panel Type: | CG-Silicon , LCM | Display Mode: | Normally Black, Transmissive |
| Active Area: | 48.96×36.72 Mm | Outline: | 54.3×46.8 Mm |
| Highlight: | sharp lcd display panels,sharp lcd flat screen |
||
LS024Q3LX03 2.4 inch Sharp LCD Panel with 48.96×36.72 mm Active Area
LS024Q3LX03 Specification
| Panel Size : | 2.4 inch | |||||||||||||||||||
| Dot Resolution : | 320(RGB)×240 (QVGA) | |||||||||||||||||||
| Pixel Configuration : | RGB Vertical Stripe | |||||||||||||||||||
| Pixel Density : | 166 PPI | |||||||||||||||||||
| Aspect Ratio : | 4:3 (H:V) | |||||||||||||||||||
|
Flat Rectangle Display | |||||||||||||||||||
| Dot Pitch : | 0.051×0.153 mm (H×V) | |||||||||||||||||||
|
0.153×0.153 mm (H×V) | |||||||||||||||||||
| Weight : | 9.5g (Typ.) | |||||||||||||||||||
|
48.96×36.72 mm (H×V) | |||||||||||||||||||
| Bezel Area : | 49.96×37.72 mm (H×V) | |||||||||||||||||||
|
54.3×46.8 mm (H×V) | |||||||||||||||||||
| Outline Depth : | 1.7 mm | |||||||||||||||||||
|
Landscape type | |||||||||||||||||||
| Touch Panel : | Without | |||||||||||||||||||
| Display Mode : | Normally Black, Transmissive | |||||||||||||||||||
| Brightness : | 450 cd/m² (Typ.) | |||||||||||||||||||
|
400 : 1 (Typ.) (Transmissive) | |||||||||||||||||||
| Display Color : | 262K (6-bit) | |||||||||||||||||||
| Color Gamut : | 72% NTSC (CIE1931) | |||||||||||||||||||
| Response Time : | 11/24 (Typ.)(Tr/Td) | |||||||||||||||||||
|
80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) | |||||||||||||||||||
|
Symmetry | |||||||||||||||||||
| White color Chromaticity : | Wx:0.290; Wy:0.330 | |||||||||||||||||||
| White Variation : | 1.25 (Max.)(9 points) | |||||||||||||||||||
|
N | |||||||||||||||||||
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day

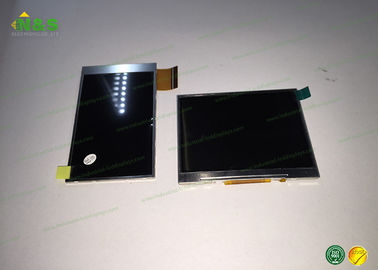

LS024Q3LX03 Picture
