Product Details:
|
| Panel Size :: | 10.4 Inch | Resolution :: | 640(RGB)×480 , VGA |
|---|---|---|---|
| Active Area :: | 211.2×158.4 Mm | Brightness :: | 400 Cd/m² (Typ.) |
| Display Colors :: | 262K (6-bit) | Response Time :: | 10/20 (Typ.)(Tr/Td) |
| High Light: | industrial lcd screen,industrial lcd panel |
||

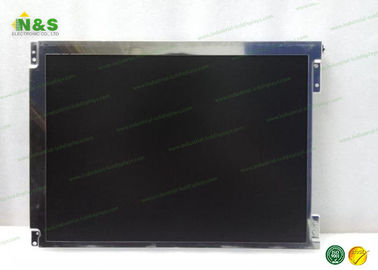

Normally White LTD104C11Z TOSHIBA 10.4 inch 640×480 for Industrial Application panel
LTD104C11Z Specification
| Panel Size : | 10.4 inch |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 500±50g |
| Surface : | Hard coating (3H) |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 214.6×161.8 mm (H×V) |
| Outline Dimension : | 238.5×177.5 mm (H×V) |
| Outline Depth : | 12.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTD104C11Z Specification
| Lamp Position : | Edge light type (Top side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 2 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Life Time : | 50K(Typ.) (Hours) | |||||
| Lamp Voltage : | 460±50V | |||||
| Lamp Current : | 3.0/6.0/6.5mA (Min./Typ./Max.) | |||||
| Lamp Operating Frequency : | 30/55/65KHz (Min./Typ./Max.) | |||||
| Lamp Startup Voltage : | 1200/1900V (Min./Max.) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HNL | |
| Lamp Driver Board : | No | |||||
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTD089EXYM | TOSHIBA | 8.9" | 1280×768 |
| LT154DEZ5Z00 | TOSHIBA | 15.4" | 1920×1200 |
| LT154DEZ1S00 | TOSHIBA | 15.4" | 1920×1200 |
| LT145EE15000 | TOSHIBA | 14.5" | 1600×900 |
| LT141DENRP00 | TOSHIBA | 14.1" | 1400×1050 |
| TFD65W46 | TOSHIBA | 6.5" | 480×234 |
| LTD131EQ2A | TOSHIBA | 13.1" | 1600×900 |
| LT043MDY5000 | TOSHIBA | 4.3" | 720×1280 |
