Product Details:
|
| Resolution: | 1024(RGB)×768 , XGA | Panel Size: | 15.0 Inch |
|---|---|---|---|
| Panel Type: | CG-Silicon , LCM | Outline: | 326×252×11.5 Mm |
| Active Area: | 304.1×228.1 Mm | Surface: | Antiglare (Haze 28%), Hard Coating (2H) |
| Brightness: | 260 Cd/m² (Typ.) | Contrast Ratio: | 350:1 (Typ.) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
Normally White LQ150X1LGN2C LCD Panel SHARP 15.0 inch LCM 1024×768 260 350:1 16.2M CCFL LVDS
LQ150X1LGN2C Specification
| Panel Size : | 15.0 inch | |||||||||||||||||
| Dot Resolution : | 1024(RGB)×768 (XGA) | |||||||||||||||||
| Pixel Configuration : | RGB Vertical Stripe | |||||||||||||||||
| Pixel Density : | 85 PPI | |||||||||||||||||
| Aspect Ratio : | 4:3 (H:V) | |||||||||||||||||
| Form Factor : | Flat Rectangle Display | |||||||||||||||||
| Dot Pitch : | 0.099×0.297 mm (H×V) | |||||||||||||||||
| Pixel Pitch : | 0.297×0.297 mm (H×V) | |||||||||||||||||
| Weight : | 1.10Kgs (Max.) | |||||||||||||||||
|
Antiglare (Haze 28%), Hard coating (2H) | |||||||||||||||||
| Active Area : | 304.1×228.1 mm (H×V) | |||||||||||||||||
| Bezel Area : | 308.1×232.1 mm (H×V) | |||||||||||||||||
| Outline Dimension : | 326×252 mm (H×V) | |||||||||||||||||
|
11.0±0.5 mm | |||||||||||||||||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||||||||||||||||
| Landscape or Portrait : | Landscape type | |||||||||||||||||
| Touch Panel : | Without | |||||||||||||||||
|
TN, Normally White, Transmissive | |||||||||||||||||
| Brightness : | 260 cd/m² (Typ.) | |||||||||||||||||
| Contrast Ratio : | 350 : 1 (Typ.) (Transmissive) | |||||||||||||||||
| Display Color : | 16.2M (6-bit + FRC) | |||||||||||||||||
| Response Time : | 16 (Typ.)(Tr+Td) | |||||||||||||||||
| Viewing Angle : | 60/60/45/55 (Typ.)(CR≥10) (L/R/U/D) | |||||||||||||||||
|
6 o'clock | |||||||||||||||||
| White color Chromaticity : | Wx:0.313; Wy:0.329 | |||||||||||||||||
|
1.25 (Max.)(5 points) | |||||||||||||||||
| Sunlight Readable : | N | |||||||||||||||||
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

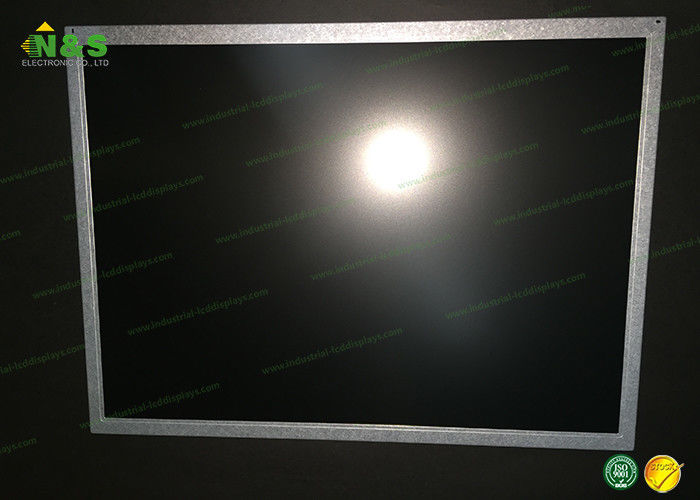

LQ150X1LGN2C Picture
