Product Details:
|
| Resolution: | 480(RGB)×640 , VGA | Panel Size: | 4.0 Inch |
|---|---|---|---|
| Panel Type: | CG-Silicon , LCM | Active Area: | 60.48×80.64 Mm |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
4.0 inch LS040V7DD01 Sharp LCD Panel LCM 480×640 60 70:1 262K WLED TTL
LS040V7DD01 Specification
| Panel Size : | 4.0 inch | |||||||||||||||||
| Dot Resolution : | 480(RGB)×640 (VGA) | |||||||||||||||||
| Pixel Configuration : | RGB Vertical Stripe | |||||||||||||||||
| Pixel Density : | 201 PPI | |||||||||||||||||
| Aspect Ratio : | 3:4 (H:V) | |||||||||||||||||
| Form Factor : | Flat Rectangle Display | |||||||||||||||||
| Dot Pitch : | 0.042×0.126 mm (H×V) | |||||||||||||||||
| Pixel Pitch : | 0.126×0.126 mm (H×V) | |||||||||||||||||
| Weight : | 58g | |||||||||||||||||
|
Hard coating (3H) | |||||||||||||||||
| Active Area : | 60.48×80.64 mm (H×V) | |||||||||||||||||
| Outline Dimension : | 69.3×96 mm (H×V) | |||||||||||||||||
| Outline Depth : | 4.2 mm | |||||||||||||||||
|
Portrait type | |||||||||||||||||
| Touch Panel : | Embeded (4-wire Resistive) | |||||||||||||||||
| Display Mode : | TN, Normally White, Transflective | |||||||||||||||||
| Brightness : | 60 cd/m² (Typ.) | |||||||||||||||||
| Contrast Ratio : | 70 : 1 (Typ.) (Transmissive) | |||||||||||||||||
| Contrast Ratio : | 5:1 (Typ.) (Reflective) | |||||||||||||||||
| Display Color : | 262K (6-bit) | |||||||||||||||||
| Response Time : | 30/50 (Typ.)(Tr/Td) | |||||||||||||||||
| Viewing Angle : | 40/40/40/40 (Typ.)(CR≥10) (L/R/U/D) | |||||||||||||||||
| Reflectance Ratio : | 6% (Typ.) | |||||||||||||||||
|
Y | |||||||||||||||||
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
We can do for You:
1. Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

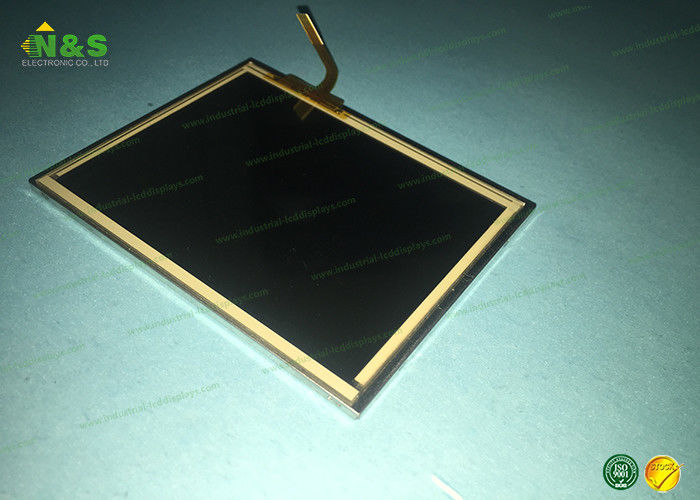

LS040V7DD01 Picture
