Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 24.0 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 , FHD | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 552.96×311.04 Mm | Outline: | 581×340 Mm |
| Highlight: | lg lcd display,lg replacement screen |
||
LM250WF2-TLA1 25.0 inch LG LCD Panel with 552.96×311.04 mm Active Area
LM250WF2-TLA1 Detail
| Panel Size : | 25.0 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 88 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.096×0.288 mm (H×V) |
| Pixel Pitch : | 0.288×0.288 mm (H×V) |
| Weight : | 2.35/2.50Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 552.96×311.04 mm (H×V) |
| Bezel Area : | 557.6×315.8 mm (H×V) |
| Outline Dimension : | 581×340 mm (H×V) |
| Outline Depth : | 14.0 (Typ.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/75/85 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH500X01-SH01 | LG Display | 5.0" | 768×1024 |
| LH500WX1-SH03 | LG Display | 5.0" | 720×1280 |
| LH450WV4-SH02 | LG Display | 4.5" | 480×800 |
| LH430WV4-SH01 | LG Display | 4.3" | 480×800 |
| LH430WV1-SH05 | LG Display | 4.3" | 480×800 |
| LH430M02-SH01 | LG Display | 4.3" | 540×960 |
| LH350H05-SH03 | LG Display | 3.5" | 320×480 |
| LH320H04-SH01 | LG Display | 3.2" | 320×480 |
| LH300WQ5-SH02 | LG Display | 3.0" | 240×400 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

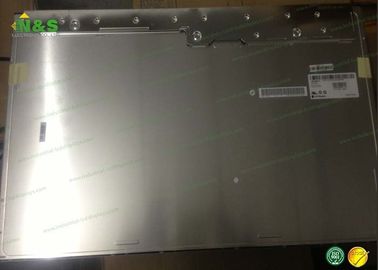

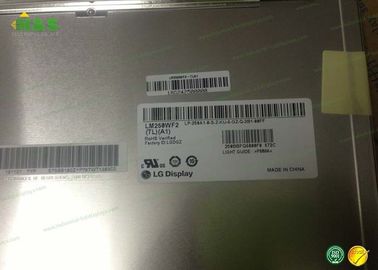

LM250WF2-TLA1 Picture
