Product Details:
|
| Product Number: | LTM10C210 | Brand: | TOSHIBA LCD Panel |
|---|---|---|---|
| Size Of Panel: | 10.4" | Resolution: | 640×480 |
| Backlight: | TTL | Brightness: | 400cd/M2 |
| C/R: | 250:1 | ||
| Highlight: | industrial touch screen display,industrial lcd panel |
||

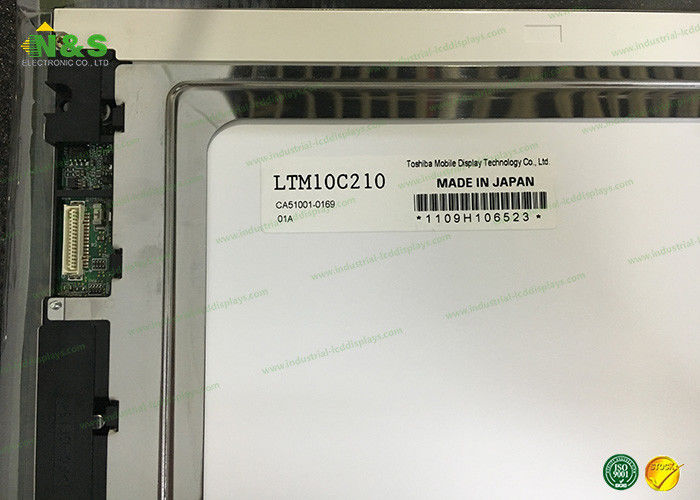

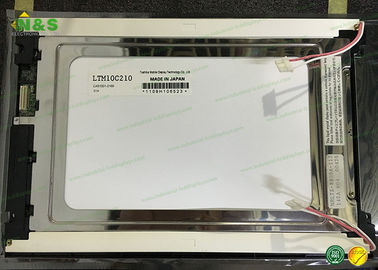

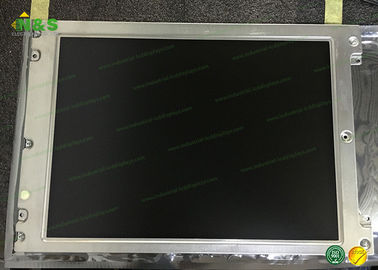

10.4inch 640x480 For LTM10C209H LTM10C210 LTM10C209A TOSHIBA INDUSTRIAL LCD Display
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 10.4 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : TN, Normally White, Transmissive
Active Area : 211.2×158.4 mm
Outline : 265×188.8×12 mm
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 250:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 50/50 (Max.)(Tr/Td)
Viewing Angle : 60/60/50/50 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 2 pcs CCFL
Signal Interface : Parallel RGB (1 ch, 6-bit) , 31 pins
Input Voltage : 5.0V (Typ.)(VDD)
| Panel Brand : | Toshiba |
|---|---|
| Panel Model : | LTM10C210 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Application : | Mobile Device |
| Operating Temperature : | 0 ~ 50 °C |
| Storage Temperature : | -20 ~ 60 °C |
| RoHS : | ROHS |
| Specific Feature : |
|
Advantages of N&S For the TFT LCD Screen:
