Product Details:
|
| Product Number: | AT080TN03 V.8 | Brand: | Innolux |
|---|---|---|---|
| Size Of Panel: | 8.0" | Resolution: | 800×480 |
| Backlight: | WLED | Brightness: | 250cd/M2 |
| Highlight: | tft lcd display,innolux lcd screen |
||

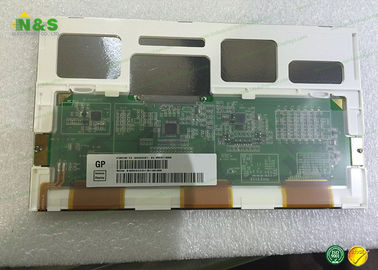

AT080TN03 V.8 800×480 Innolux LCD Panel , tablet lcd screen display 250cd / M2 LVDS Interface
Panel Brand : CHIMEI INNOLUX
Panel Model : AT080TN03 V.8
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 8.0 inch
Resolution : 800(RGB)×480 , WVGA
Display Mode : TN, Normally White, Transmissive
Outline : 192.8×116.9×6 mm
Surface : Antiglare
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 300:1 (Typ.)
| Panel Model | Size | Resolution | cd/m2 | C/R | Backlight | Interface |
| AT080TN03 | 8.0" | 800×480 | 350 | 300:1 | WLED | TTL |
| AT080TN03 V.1 | 8.0" | 800×480 | 250 | 300:1 | WLED | TTL |
| AT080TN03 V.2 | 8.0" | 800×480 | 500 | 300:1 | WLED | TTL |
| AT080TN03 V.3 | 8.0" | 800×480 | 300 | 300:1 | WLED | TTL |
| AT080TN03 V.7 | 8.0" | 800×480 | 300 | 300:1 | WLED | TTL |
| AT080TN03 V.8 | 8.0" | 800×480 | 250 | 300:1 | WLED | LVDS |
| AT080TN03 V.A | 8.0" | 800×480 | 200 | 300:1 | WLED | TTL |
| Panel Brand : | Chimei |
|---|---|
| Panel Model : | AT080TN03 V.8 |
| Model Alias : | AT080TN03 V8 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Application : |
Industrial LCD Panel |
| Operating Temperature : | -20 ~ 60 °C |
| Storage Temperature : | -30 ~ 70 °C |
Details:
1: High Quality LCD Display.
2: It is used to replace your wrong, damaged, cracked LCD and Touch screen(Digitizer).
3: Each item will be tested before we ship it.
4: We pack each item carefully and make them in good condition.
5: Package: 1PC LCD Screen
Note:
1: The number on the LCD wire sometimes is not the same as your broken one, that is because of the different producing period, plase dont worry about it.
2: When installing the LCD (by experienced people), please keep the golden finger on LCD tightly and clearly soldered on the mainboard.
3: Installation guide not be included, please be sure you know how to install before bid.
