Product Details:
|
| Resolution: | 383×234 | Panel Size: | 3.0 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Active Area: | 61.7×44.5 Mm |
| Outline: | 102.2×78.5×5.9 Mm | Display Colors: | Full Color |
| Response Time: | 30/50 (Typ.)(Tr/Td) | Viewing Angle: | 45/45/30/10 (Min.)(CR≥10) (L/R/U/D) |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
LQ31E05 3.0 inch Sharp LCD Panel with 61.7×44.5 mm Active Area
LQ31E05 Specification
| Panel Size : | 3.0 inch | |
| Dot Resolution : | 383×234 | |
| Pixel Configuration : | RGB Delta | |
| Pixel Density : | 89 PPI | |
| Aspect Ratio : | 7:5 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Pixel Pitch : | 0.161×0.190 mm (H×V) | |
| Weight : | 17±5g | |
| Active Area : | 61.7×44.5 mm (H×V) | |
| Outline Dimension : | 102.2×78.5 mm (H×V) | |
| Outline Depth : | 5.9 (Max.) mm | |
| Holes & Brackets : | Face mounting holes (4-Φ5) on left, right bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without | |
| Display Mode : | TN, Normally White, Transmissive | |
| Display Color : | Full color () | |
| Response Time : | 30/50 (Typ.)(Tr/Td) | |
|
45/45/30/10 (Min.)(CR≥10) (L/R/U/D) | |
|
11% (Min.)(with Polarizer) | |
| Sunlight Readable : | N |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

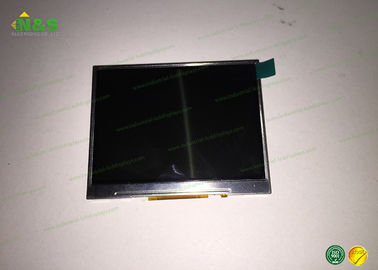

LQ31E05 Picture
