Product Details:
|
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | Contrast Ratio: | 1000:1 (Typ.) |
|---|---|---|---|
| Outline: | 432×331.5 Mm | Active Area: | 408×306 Mm |
| Display Colors: | 16.7M (8-bit) , CIE1931 100% | Signal Interface :: | LVDS (2 Ch, 8-bit) , 30 Pins |
| Surface: | Antiglare, Hard Coating (3H) | Panel Type: | A-Si TFT-LCD , LCM |
| High Light: | auo display panel,auo lcd display |
||
AUO M201UN03 V0 LCD Panel 20.1 inch Normally Black with 408×306 mm Active Area
M201UN03 V0 LCD Panel Information
| Panel Brand : | AUO |
| Panel Model : | M201UN03 V0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 20.1 inch |
| Resolution : | 1600(RGB)×1200 , UXGA |
| Display Mode : | AMVA, Normally Black, Transmissive |
| Active Area : | 408×306 mm |
| Outline : | 432×331.5 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 100% |
| Response Time : | 11/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| M270DAN01.1 CELL | AUO | 27.0" | 2560×1440 |
| T500QVN03.3 CELL | AUO | 50" | 3840×2160 |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
| T215HVN01.2 CELL | AUO | 21.5" | 1920×1080 |
| Panel Size : | 20.1 inch |
| Dot Resolution : | 1600(RGB)×1200 (UXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 99 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.085×0.255 mm (H×V) |
| Pixel Pitch : | 0.255×0.255 mm (H×V) |
| Weight : | 3.30Kgs (Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 408×306 mm (H×V) |
| Bezel Area : | 413.0×311.0 mm (H×V) |
| Outline Dimension : | 432×331.5 mm (H×V) |
| Outline Depth : | 40 mm |
| Holes & Brackets : | Side mounting holes (4-M3) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

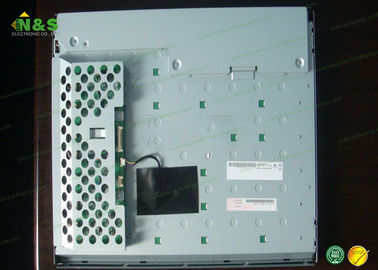

M201UN03 V0 AUO LCD Panel Picture
