Product Details:
|
| Product Number: | G121SN01 V4 | Brand: | AUO |
|---|---|---|---|
| Size Of Panel: | 12.1 | Resolution: | 800×600 |
| Brightness: | 450 Cd/m² | C/R: | 700:1 |
| High Light: | auo lcd screen,auo lcd display |
||

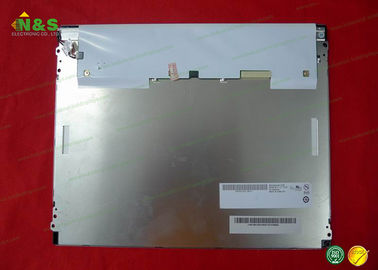

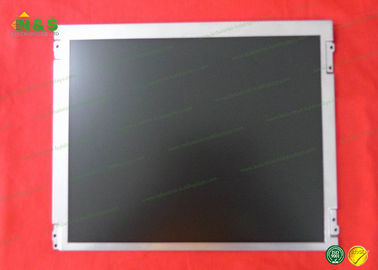

G121SN01 V4 12.1 inch LCD Industrial Application panel 800*600 AUO
| Panel Model | Brand | Size | Composition | Resolution | Brightness |
| G121SN01 V4 | AUO | 12.1" | LCM | 800×600 | 450 |
| G121SN01 V3 | AUO | 12.1" | LCM | 800×600 | 400 |
| G121SN01 V0 | AUO | 12.1" | LCM | 800×600 | 400 |
| G121SN01 V1 | AUO | 12.1" | LCM | 800×600 | 200 |
| G121SN01 V2 | AUO | 12.1" | LCM | 800×600 | 400 |
| G121SN01 V402 | AUO | 12.1" | LCM | 800×600 | 450 |
| G121SN01 V403 | AUO | 12.1" | LCM | 800×600 | 500 |
Panel Size : 12.1 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 82 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.1025×0.3075 mm (H×V)
Pixel Pitch : 0.3075×0.3075 mm (H×V)
Weight : 580g (Max.)
Surface : Antiglare, Hard coating (3H)
Active Area : 246×184.5 mm (H×V)
Bezel Area : 249.05×188.3 mm (H×V)
Outline Dimension : 279×209 mm (H×V)
Outline Depth : 9.0 (Typ.) mm
Holes & Brackets : Face mounting holes (6-Φ3.4, 1-R1.7) on left and right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
We thought that every customer is our family member.
2. Best service with help is needed, if you have any problem, the first one you thought for help must be our team
3. Try our best to meet our customers’ requirements.
4. 24 hours online.
5. Check the item one by one before packing.
6. Delivery the product within our promise time.
7. Follow the order all the time, till you sell them successfully without any problem.
8. Solve all the problems after we got complaints from dear customers, no excuse! Because your problem, is ours.
9. Technical support. We have being already made these LCD Screen Panels for about 6 years in the international trade. Our product contained but not limited to Medical LCD display, Aerospace LCD screen, Gaming LCD Panels, Military LCD panels, Kiosk LCD display, Transportation LCD panels, Industrial LCD panels and more.
on LCDs in China. Here we are to quote your need.
