Product Details:
|
| Display Mode: | AMVA, Normally Black, Transmissive | Frequency: | 60Hz |
|---|---|---|---|
| Contrast Ratio: | 700:1 (Typ.) | Resolution: | 1600(RGB)×1200 , UXGA |
| Input Voltage: | 5.0V (Typ.) | Outline: | 432×331.4 Mm |
| Panel Type: | A-Si TFT-LCD , LCM | Brightness: | 250 Cd/m² (Typ.) |
| Highlight: | auo display panel,auo lcd screen |
||
Normally Black M201UN02 V2 AUO LCD Panel 20.1 inch Landscape type
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
M201UN02 Detail
| Panel Brand : | AU Optronics |
| Panel Model : | M201UN02 V2 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 20.1 inch |
| Resolution : | 1600(RGB)×1200 , UXGA |
| Display Mode : | AMVA, Normally Black, Transmissive |
| Active Area : | 408×306 mm |
| Outline : | 432×331.4 mm |
| Surface : | |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 15/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
| Panel Size : | 20.1 inch |
| Dot Resolution : | 1600(RGB)×1200 (UXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 99 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.085×0.255 mm (H×V) |
| Pixel Pitch : | 0.255×0.255 mm (H×V) |
| Weight : | 3.00Kgs (Typ.) |
| Active Area : | 408×306 mm (H×V) |
| Bezel Area : | 412.0×310.0 mm (H×V) |
| Outline Dimension : | 432×331.4 mm (H×V) |
| Outline Depth : | 23.1 (Typ.) mm |
| Holes & Brackets : | Side mounting holes (8-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
| T215HVN01.2 CELL | AUO | 21.5" | 1920×1080 |
| B070ATN02.0 CELL | AUO | 7.0" | 600×1024 |
| M238DAN01.3 CELL | AUO | 23.8" | 2560×1440 |
| B070AAN01.0 | AUO | 7.0" | 600×1024 |
| M238DAN01.1 CELL | AUO | 23.8" | 2560×1440 |

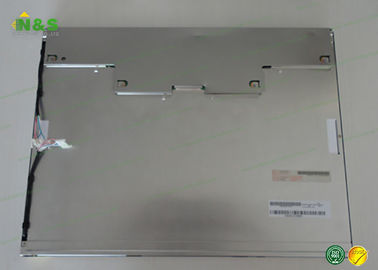

M201UN02 V2 AUO LCD Panel Picture
