Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 24.0 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1200 , WUXGA | Display Mode: | S-IPS, Normally Black, Transmissive |
| Active Area: | 518.4×324 Mm | Outline: | 546.4×350 Mm |
| Highlight: | lg lcd display,lg replacement screen |
||
LM240WU2-SLB1 24.0 inch LG LCD Pane with 518.4×324 mm Active Area
LM240WU2-SLB1 Information
| Panel Size : | 24.0 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1200 (WUXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 2.65Kgs (Typ.) |
| Surface : | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Active Area : | 518.4×324 mm (H×V) |
| Bezel Area : | 523.4×329.0 mm (H×V) |
| Outline Dimension : | 546.4×350 mm (H×V) |
| Outline Depth : | 28.9 (Typ.) mm |
| Holes & Brackets : | Side mounting holes |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Display Mode : | S-IPS, Normally Black, Transmissive |
|---|---|
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 5.5/6.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.43 (Max.)(13 points) |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LG 1.3 Circular P-OLED | LG Display | 1.3" | 320×320 |
| LH300WQ1-ED01 | LG Display | 3.0" | 240×400 |
| LB050S01-RD02 | LG Display | 5.0" | 800×600 |
| LB050S01-RD01 | LG Display | 5.0" | 800×600 |
| LC430DUY-SHA3 | LG Display | 43" | 1920×1080 |
| LD490EPY-SHP1 | LG Display | 49" | 1920×1080 |
| LD550DPY-SHP1 | LG Display | 55" | 1920×1080 |
| LC490EGY-SHM3 | LG Display | 49" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

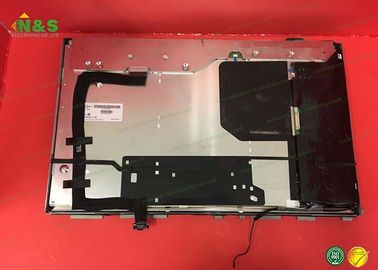

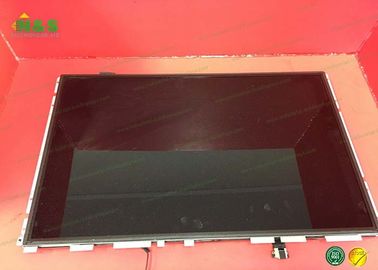

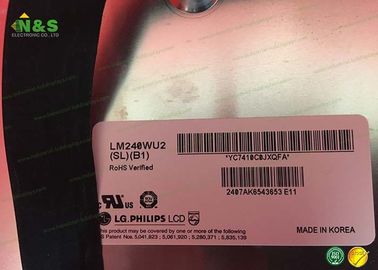

LM240WU2-SLB1 Picture
