Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 20.0 Inch |
|---|---|---|---|
| Resolution: | 1600(RGB)×900 , HD+ | Display Mode: | TN, Normally White, Transflective |
| Active Area: | 442.8×249.075 Mm | Outline: | 0 |
| Highlight: | lg lcd display,lg replacement screen |
||
Normally White LM200WD1-TLD1 20.0 inch LG LCD Pane with 442.8×249.075 mm Active Area
LM200WD1-TLD1 Information
| Panel Size : | 20.0 inch |
|---|---|
| Dot Resolution : | 1600(RGB)×900 (HD+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 91 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.09225×0.27675 mm (H×V) |
| Pixel Pitch : | 0.27675×0.27675 mm (H×V) |
| Active Area : | 442.8×249.075 mm (H×V) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Company Strength:
1> ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 5 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH500X01-SH01 | LG Display | 5.0" | 768×1024 |
| LH500WX1-SH03 | LG Display | 5.0" | 720×1280 |
| LH450WV4-SH02 | LG Display | 4.5" | 480×800 |
| LH430WV4-SH01 | LG Display | 4.3" | 480×800 |
| LH430WV1-SH05 | LG Display | 4.3" | 480×800 |
| LH430M02-SH01 | LG Display | 4.3" | 540×960 |
| LH350H05-SH03 | LG Display | 3.5" | 320×480 |
| LH320H04-SH01 | LG Display | 3.2" | 320×480 |
| LH300WQ5-SH02 | LG Display | 3.0" | 240×400 |
| LH176J03-SH03 | LG Display | 1.8" | 220×176 |
| LH300WQ2-SH16 | LG Display | 3.0" | 240×400 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

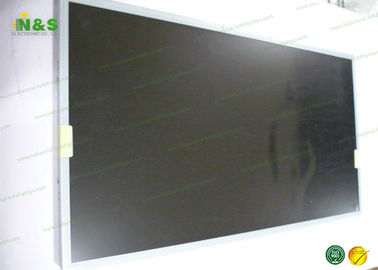

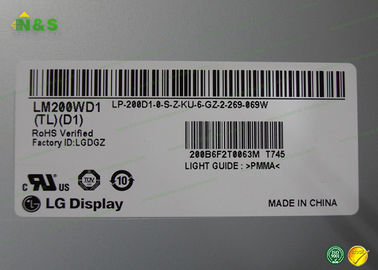

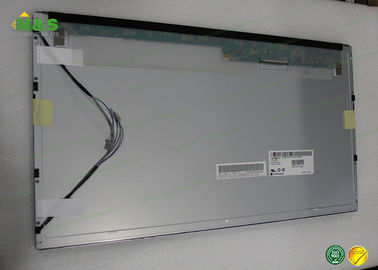

LM200WD1-TLD1 Picture
