Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 19.0 Inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024 , SXGA | Display Mode: | TN, Normally White, Transflective |
| Active Area: | 376.32×301.056 Mm | Outline: | 396×324×16 Mm |
| Highlight: | lg display panel,lg replacement screen |
||
Hard coating LM190E08-TLGDLG LCD Pane 19.0 inch with 376.32×301.056 mm Active Area
LM190E08-TLGD LG Information
| Panel Size : | 19.0 inch |
|---|---|
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 86 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.098×0.294 mm (H×V) |
| Pixel Pitch : | 0.294×0.294 mm (H×V) |
| Weight : | 1.95/2.05Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 376.32×301.056 mm (H×V) |
| Bezel Area : | 380.3×305.0 mm (H×V) |
| Outline Dimension : | 396×324 mm (H×V) |
| Outline Depth : | 12.1/16.0 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Response Time : | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
| Sunlight Readable : | N |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH550WF3-SH01 | LG Display | 5.5" | 1080×1920 |
| LC320DXY-SHA3 | LG Display | 31.5" | 1366×768 |
| LC490EQL-SHA2 | LG Display | 49" | 3840×2160 |
| LC430EQL-SHA2 | LG Display | 43" | 3840×2160 |
| LC430DUY-SHA2 | LG Display | 43" | 1920×1080 |
| LC550EGY-SHM2 | LG Display | 55" | 3840×2160 |
| LC320DXJ-SFA9 | LG Display | 31.5" | 1366×768 |
| LH400WV3-SD06 | LG Display | 4.0" | 480×800 |
| LH300Q02-SD01 | LG Display | 3.0" | 240×320 |
| LH500X01-SH01 | LG Display | 5.0" | 768×1024 |
| LH500WX1-SH03 | LG Display | 5.0" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

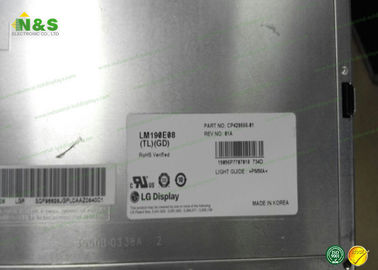

LM190E08-TLGD Picture
