Product Details:
|
| Panel Size: | 7.0 Inch | Resolution: | 800(RGB)×480 , WVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | Parallel RGB (1 Ch, 8-bit) |
| Highlight: | industrial touch screen display,industrial lcd screen |
||
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 134 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.064×0.1805 mm (H×V) |
| Pixel Pitch : | 0.192×0.1805 mm (H×V) |
| Active Area : | 153.6×86.64 mm (H×V) |
| Outline Dimension : | 162.5×97.89 mm (H×V) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : |
|
|
| Brightness : | 0 cd/m² | |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (6-bit + Hi-FRC) | |
| Color Gamut : | 50% NTSC (CIE1931) | |
| Response Time : | 5/20 (Typ.)(Tr/Td) | |
| Viewing Angle : | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 6 o'clock | |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD045F8W1-A12 | HannStar | 4.5" | 480×854 |
| HSD040F8W1-A01 | HannStar | 4.0" | 480×800 |
| HSD038F7N1-B02 | HannStar | 3.8" | 320×480 |
| HSD038F7N1-A02 | HannStar | 3.8" | 320×480 |
| HSD036FAW1-A02 | HannStar | 3.6" | 240×400 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.

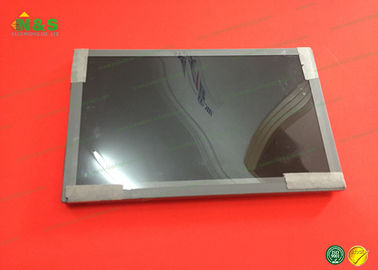

HSD070IDW3-A00-0299 Picture
