Product Details:
|
| Panel Brand :: | TOSHIBA | Panel Model :: | LTA065B626A |
|---|---|---|---|
| Panel Type :: | A-Si TFT-LCD , LCM | Panel Size :: | 6.5 Inch |
| Display Mode :: | TN, Normally White, Transmissive | Ctive Area : 143.4×79.326 Mm: | 143.4×79.326 Mm |
| High Light: | industrial touch screen display,industrial lcd screen |
||

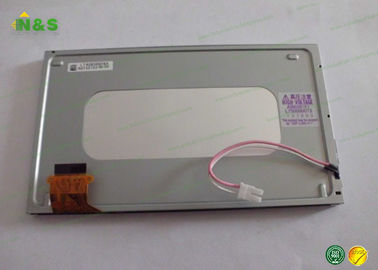

60Hz LTA065B626A TOSHIBA 6.5 inch Normally White with 143.4×79.326 mm
LTA065B626A DETAIL
| Panel Size : | 6.5 inch |
|---|---|
| Dot Resolution : | 400(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 71 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1195×0.339 mm (H×V) |
| Pixel Pitch : | 0.3585×0.339 mm (H×V) |
| Weight : | 155.0g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 143.4×79.326 mm (H×V) |
| Bezel Area : | 145.8×81.7 mm (H×V) |
| Outline Dimension : | 155×89.2 mm (H×V) |
| Outline Depth : | 7.7 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTA065B626A DETAIL
| Lamp Position : | Edge light type | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 1 pcs | |||||
| Lamp Shape : | L shape | |||||
| Lamp Life Time : | 10K(Min.) (Hours) | |||||
| Lamp Voltage : | 650V (Typ.) | |||||
| Lamp Current : | 3.0/6.0/7.0mA (Min./Typ./Max.) | |||||
| Lamp Operating Frequency : | 30/40/80KHz (Min./Typ./Max.) | |||||
| Lamp Startup Voltage : | 1620V (Min.)(Ta=-20℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |
| Lamp Driver Board : | No | |||||
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTD089EXYM | TOSHIBA | 8.9" | 1280×768 |
| LT154DEZ5Z00 | TOSHIBA | 15.4" | 1920×1200 |
| LT154DEZ1S00 | TOSHIBA | 15.4" | 1920×1200 |
| LT145EE15000 | TOSHIBA | 14.5" | 1600×900 |
| LT141DENRP00 | TOSHIBA | 14.1" | 1400×1050 |
| TFD65W46 | TOSHIBA | 6.5" | 480×234 |
| LTD131EQ2A | TOSHIBA | 13.1" | 1600×900 |
